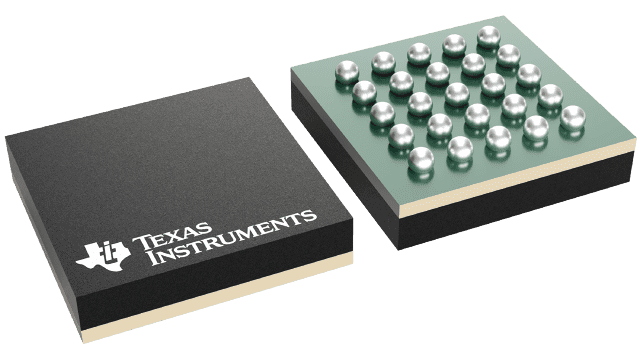

TDC7201ZAXT Texas Instruments - Yeehing Electronics
TDC7201 Time-to-Digital Converter for Time-of-Flight Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.279 |
| 100 — 249 | 2.673 |
| 250 — 999 | 2.101 |
| 1,000 + | 1.25 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Sensor Interface |
| RoHS | Y |
| Type | Time-to-Digital Converter |
| Interface Type | SPI |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-25 |
| Packaging | Reel |
| Features | Time of flight |
| Input Voltage | 3.6 V |
| Product | Sensor Interfaces |
| Series | TDC7201 |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.6 V |
| Product Type | Sensor Interface |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001362 oz |
For more information, please refer to datasheet
Documents
More Information
The TDC7201 is designed for use with ultrasonic, laser and radar range finding equipment using time-of-flight technique. The TDC7201 has two built-in Time-to-Digital Converters (TDCs) that can be used to measure distance down to 4 cm and up to several kilometers using a simple architecture, which eliminates the need to use expensive FPGAs or processors.
