Description

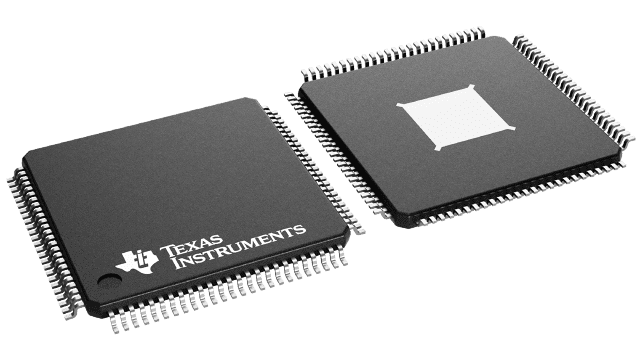

TFP401AMPZPEP Texas Instruments - Yeehing Electronics
Enhanced product Panelbus DVI receiver 165MHz, HSYNC fix
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 17.53 |
| 100 — 249 | 15.312 |
| 250 — 999 | 11.806 |
| 1,000 + | 7.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -55 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 90 |
| Package | Pins | HTQFP (PZP) | 100 |
For more information, please refer to datasheet
Documents
| TFP401AMPZPEP Datasheet |
More Information
The Texas Instruments TFP401A is a TI PanelBus™ flat panel display product, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted primarily at desktop LCD monitors and digital projectors, the TFP401A finds applications in any design requiring high-speed digital interface. The TFP401A supports display resolutions up to 1080p and WUXGA in 24-bit true color pixel format. The TFP401A offers design flexibility to drive one or two pixels per clock, supports TFT or DSTN panels, and provides an option for time staggered pixel outputs for reduced ground bounce. PowerPAD™ advanced packaging technology results in best of class power dissipation, footprint, and ultra-low ground inductance. The TFP401A combines PanelBus™ circuit innovation with TIs advanced 0.18-mm EPIC-5™ CMOS process technology, along with TI PowerPAD™ package technology to achieve a reliable, low-powered, low-noise, high-speed digital interface solution.
