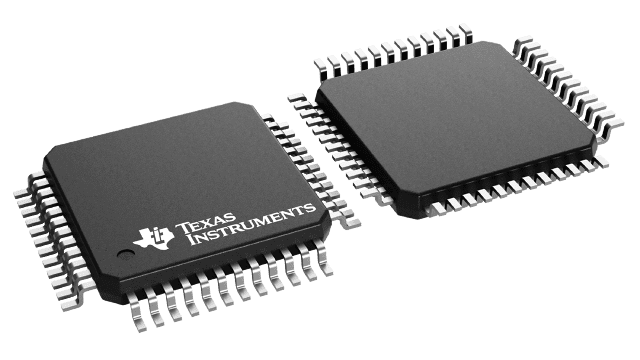

THS0842IPFB Texas Instruments - Yeehing Electronics
Dual-Channel, 8-Bit, 40-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 18.018 |
| 100 — 249 | 15.738 |
| 250 — 999 | 12.135 |
| 1,000 + | 8.68 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | THS0842 |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-48 |
| Resolution | 8 bit |
| Number of Channels | 2 Channel |
| Sampling Rate | 40 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 3.3 V |
| Digital Supply Voltage | 3 V to 3.6 V |
| SNR - Signal to Noise Ratio | 42.7 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Height | 1 mm |
| Length | 7 mm |
| Number of Converters | 2 Converter |
| Power Consumption | 320 mW |
| Width | 7 mm |
| Brand | Texas Instruments |
| Development Kit | THS0842EVM |
| DNL - Differential Nonlinearity | +/- 2 LSB |
| ENOB - Effective Number of Bits | 6.8 Bit |
| INL - Integral Nonlinearity | +/- 2.2 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Pd - Power Dissipation | 393 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 52 dB |
| SINAD - Signal to Noise and Distortion Ratio | 43.3 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.004847 oz |
For more information, please refer to datasheet
Documents
| THS0842IPFB Datasheet |
More Information
The THS0842 is a dual 8-bit 40 MSPS high-speed A/D converter. It alternately converts each analog input signal into 8-bit binary-coded digital words up to a maximum sampling rate of 40 MSPS with an 80 MHz clock. All digital inputs and outputs are 3.3 V TTL/CMOS-compatible.
