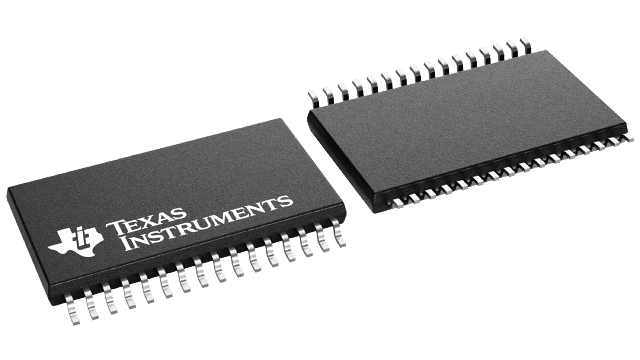

THS1206MDAREP Texas Instruments - Yeehing Electronics

Enhanced Product 12-Bit, 6 Msps Adc Quad Ch. (Config.), Dsp/Up If, Integ. 16X Fifo

Pricing (USD)

Quantity	Unit Price
1 — 99	36.628
100 — 249	32.558
250 — 999	26.765
1,000 +	16.76

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

THS1206MDAREP Datasheet

More Information

The THS1206 is a CMOS, low-power, 12-bit, 6 MSPS analog-to-digital converter (ADC). The speed, resolution, bandwidth, and single-supply operation are suited for applications in radar, imaging, high-speed acquisition, and communications. A multistage pipelined architecture with output error correction logic provides for no missing codes over the full operating temperature range. Internal control registers are used to program the ADC into the desired mode. The THS1206 consists of four analog inputs, which are sampled simultaneously. These inputs can be selected individually and configured to single-ended or differential inputs. An integrated 16 word deep FIFO allows the storage of data in order to take the load off of the processor connected to the ADC. Internal reference voltages for the ADC (1.5 V and 3.5 V) are provided.
