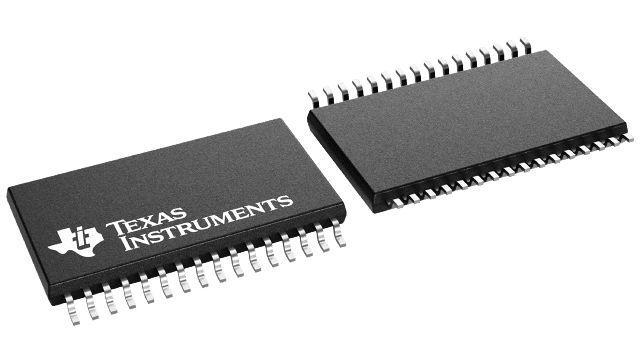

THS1207IDA Texas Instruments - Yeehing Electronics
12-Bit, 6 MSPS Simultaneous Sampling Quad Channel ADC; Includes Parallel DSP/uP I/F & Ch. Auto-Scan
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.099 |
| 100 — 249 | 20.177 |
| 250 — 999 | 15.557 |
| 1,000 + | 9.74 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | THS1207 |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-32 |
| Resolution | 12 bit |
| Number of Channels | 2 Channel/4 Channel |
| Sampling Rate | 6 MS/s |
| Input Type | Differential/Single-Ended |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 3 V to 5.25 V |
| SNR - Signal to Noise Ratio | 69 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Features | Internal Reference |
| Height | 1.15 mm |
| Length | 11 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 186 mW |
| Width | 6.2 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 1.5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5.25 V, 4.75 V to 5.25 V |
| Pd - Power Dissipation | 216 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 64 dB |
| Factory Pack Quantity | 46 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.006113 oz |
For more information, please refer to datasheet
Documents
| THS1207IDA Datasheet |
More Information
The THS1207 is a CMOS, low-power, 12-bit, 6 MSPS analog-to-digital converter (ADC). The speed, resolution, bandwidth, and single-supply operation are suited for applications in radar, imaging, high-speed acquisition, and communications. A multistage pipelined architecture with output error correction logic provides for no missing codes over the full operating temperature range. Internal control registers are used to program the ADC into the desired mode. The THS1207 consists of four analog inputs, which are sampled simultaneously. These inputs can be selected individually and configured to single-ended or differential-inputs. Internal reference voltages for the ADC (1.5 V and 3.5 V) are provided. An external reference can also be chosen to suit the dc accuracy and temperature drift requirements of the application.
