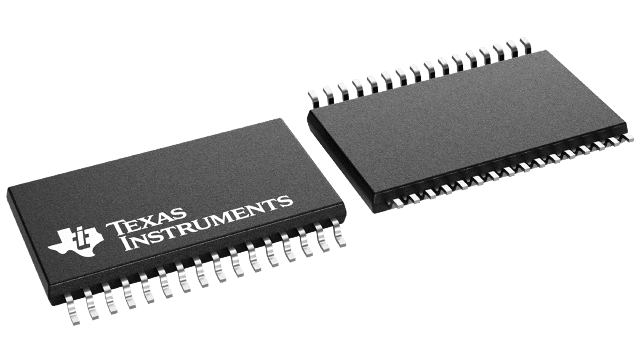

THS12082IDAR Texas Instruments - Yeehing Electronics
12 Bit, 8 MSPS ADC with Dual Ch., DSP/uP Interface, 16X FIFO, Channel Autoscan, Low Power
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 26.25 |
| 100 — 249 | 22.929 |
| 250 — 999 | 17.679 |
| 1,000 + | 11.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | THS12082 |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-32 |
| Resolution | 12 bit |
| Number of Channels | 1 Channel/2 Channel |
| Sampling Rate | 8 MS/s |
| Input Type | Differential/Single-Ended |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 3 V to 5.25 V |
| SNR - Signal to Noise Ratio | 69 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Internal Reference |
| Height | 1.15 mm |
| Length | 11 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 186 mW |
| Width | 6.2 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 1.5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5.25 V, 4.75 V to 5.25 V |
| Pd - Power Dissipation | 216 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 65 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.006113 oz |
For more information, please refer to datasheet
Documents
| THS12082IDAR Datasheet |
More Information
The THS12082 is a CMOS, low-power, 12-bit, 8 MSPS analog-to-digital converter (ADC). The speed, resolution, bandwidth, and single-supply operation are suited for applications in radar, imaging, high-speed acquisition, and communications. A multistage pipelined architecture with output error correction logic provides for no missing codes over the full operating temperature range. Internal control registers allow for programming the ADC into the desired mode. The THS12082 consists of two analog inputs, which are sampled simultaneously. These inputs can be selected individually and configured to single-ended or differential inputs. An integrated 16 word deep FIFO allows the storage of data in order to take the load off of the processor connected to the ADC. Internal reference voltages for the ADC (1.5 V and 3.5 V) are provided.
