Texas Instruments
THS1408MPHPEP
THS1408MPHPEP
Regular price
$18.66 USD
Regular price
Sale price
$18.66 USD
Unit price
per
Couldn't load pickup availability

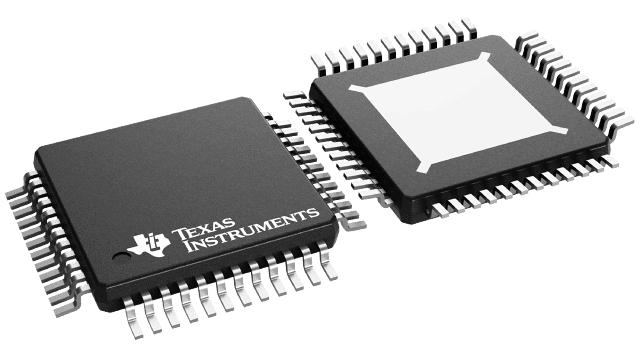

THS1408MPHPEP Texas Instruments - Yeehing Electronics
Enhanced Product 14-Bit, 8 Msps Adc Single Ch., Diff. Input, Dsp/Up If, Pgmable Gain Amp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 40.788 |
| 100 — 249 | 36.256 |
| 250 — 999 | 29.805 |
| 1,000 + | 18.66 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1254 |
| Mounting Style | SMD/SMT |
| Package / Case | QSOP-20 |
| Resolution | 24 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 20 kS/s |
| Input Type | Differential |
| Interface Type | I2C, SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 1.8 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Features | 50/60 Hz Rejection |
| Height | 1.5 mm |
| Length | 8.75 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 4.3 mW |
| Width | 4 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 0.0015 % FSR |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Pd - Power Dissipation | 500 mW (1/2 W) |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 4.096 V |
| Factory Pack Quantity | 50 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.004437 oz |
For more information, please refer to datasheet
Documents
| THS1408MPHPEP Datasheet |
More Information
The THS1408 is a 14-bit, 3/8-MSPS single-supply analog-to-digital converter (ADC), with an internal reference, differential inputs, programmable input gain, and an on-chip sample and hold amplifier.
