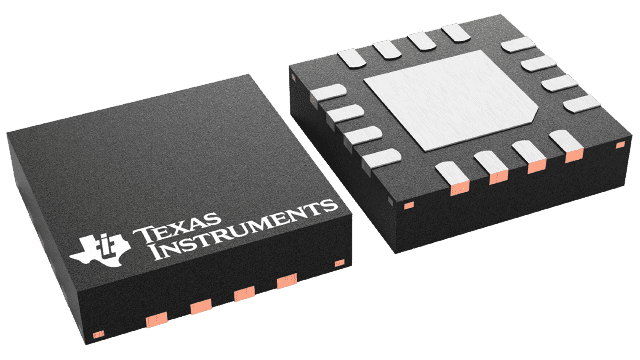

THS3217IRGVT Texas Instruments - Yeehing Electronics
DC to 800-MHz, Differential-to-Single-Ended, DAC Output Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.884 |
| 100 — 249 | 8.873 |
| 250 — 999 | 6.974 |
| 1,000 + | 4.73 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | High Speed Operational Amplifiers |
| RoHS | Y |
| Series | THS3217 |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | - |
| SR - Slew Rate | 5 kV/us |
| Voltage Gain dB | - |
| CMRR - Common Mode Rejection Ratio | 47 dB to 55 dB |
| Output Current per Channel | 110 mA |
| Ib - Input Bias Current | 2 uA |
| Vos - Input Offset Voltage | 18 mV |
| Supply Voltage - Max | 15.8 V |
| Supply Voltage - Min | 8 V |
| Operating Supply Current | 55 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Amplifier Type | High Speed Amplifiers |
| Features | Shutdown |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| 3 dB Bandwidth | 800 MHz |
| Gain V/V | 5.02 V/V |
| Ios - Input Offset Current | 50 nA |
| Moisture Sensitive | Yes |
| Product Type | Op Amps - High Speed Operational Amplifiers |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | 1.3 V |
| Unit Weight | 0.001764 oz |
For more information, please refer to datasheet
Documents
| THS3217IRGVT Datasheet |
More Information
The THS3217 combines the key signal-chain components required to interface with a complementary-current output, digital-to-analog converter (DAC). The flexibility provided by this two-stage amplifier system delivers the low distortion, dc-coupled, differential to single-ended signal processing required by a wide range of systems. The input stage buffers the DAC resistive termination, and converts the signal from differential to single-ended with a fixed gain of 2 V/V. The differential to single-ended output is available externally for direct use, and can also be connected through an RLC filter or attenuator to the input of an internal output power stage (OPS). The wideband, current-feedback, output power stage provides all pins externally for flexible gain setting.
