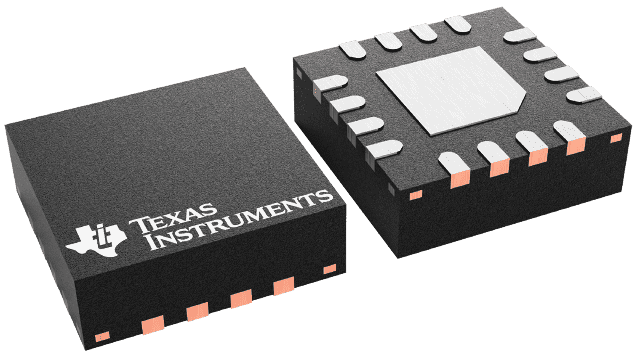

THS4303RGTT Texas Instruments - Yeehing Electronics
1.8GHz, Wideband Fixed-Gain Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.105 |
100 — 249 | 4.977 |
250 — 999 | 3.912 |
1,000 + | 2.32 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Video Amplifiers |
RoHS | Y |
Series | THS4303 |
Number of Channels | 1 Channel |
SR - Slew Rate | 5.5 kV/us |
Vos - Input Offset Voltage | 5.25 mV |
Supply Voltage - Max | 5 V |
Supply Voltage - Min | 3 V |
Operating Supply Current | 48 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-16 |
Packaging | Reel |
Amplifier Type | Voltage Feedback |
Height | 0.9 mm |
Length | 3 mm |
Product | Video Amplifiers |
Width | 3 mm |
Brand | Texas Instruments |
CMRR - Common Mode Rejection Ratio | 60 dB |
Development Kit | THS4303EVM |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3 V to 5 V |
Pd - Power Dissipation | 1650 mW |
Product Type | Video Amplifiers |
Factory Pack Quantity | 250 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 5.25 dB |
Unit Weight | 0.000850 oz |
For more information, please refer to datasheet
Documents
THS4303RGTT Datasheet |
More Information
The THS4303 device is a wideband, fixed-gain amplifier that offers high bandwidth, high slew rate, low noise, and low distortion. This combination of specifications enables analog designers to transcend current performance limitations and process analog signals at much higher speeds than previously possible with closed-loop, complementary amplifier designs. The devices are offered in a 16-pin leadless package and incorporate a powerdown mode for quiescent power savings.
