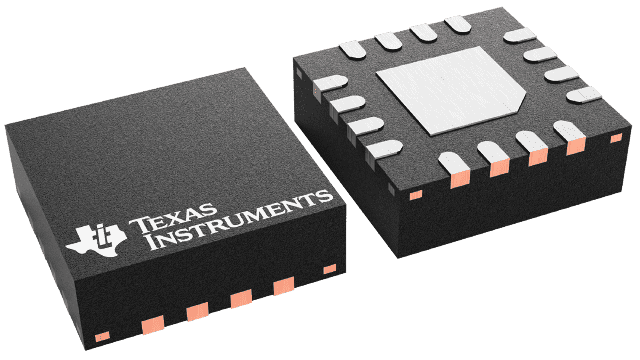

THS4509QRGTRQ1 Texas Instruments - Yeehing Electronics
Automotive Catalog Wideband Operational Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 7.356 |
100 — 249 | 5.997 |
250 — 999 | 4.714 |
1,000 + | 2.80 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Differential Amplifiers |
RoHS | Y |
Series | THS4509-Q1 |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 3 MHz |
SR - Slew Rate | 6.6 kV/us |
CMRR - Common Mode Rejection Ratio | 90 dB |
Ib - Input Bias Current | 0.0155 uA |
Vos - Input Offset Voltage | 4 mV |
Supply Voltage - Max | 5 V |
Supply Voltage - Min | 3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-16 |
Qualification | AEC-Q100 |
Packaging | Reel |
Features | Shutdown |
Product | Differential Amplifiers |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Pd - Power Dissipation | 2300 mW |
Product Type | Differential Amplifiers |
Factory Pack Quantity | 3000 |
Subcategory | Amplifier ICs |
Unit Weight | 0.000850 oz |
For more information, please refer to datasheet
Documents
THS4509QRGTRQ1 Datasheet |
More Information
The THS4509-Q1 is a wideband, fully differential operational amplifier designed for 5-V data-acquisition systems. It has very low noise at 1.9 nV/√Hz, and extremely low harmonic distortion of –75-dBc HD2 and –80-dBc HD3 at 100 MHz with 2 Vpp, G = 10 dB, and 1-kΩ load. Slew rate is very high at 6600 V/µs and with settling time of 2 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for minimum gain of 6 dB but is optimized for gain of 10 dB.
