Texas Instruments
THS4509RGTR
THS4509RGTR
Regular price
$2.37 USD
Regular price
Sale price
$2.37 USD
Unit price
per
Couldn't load pickup availability

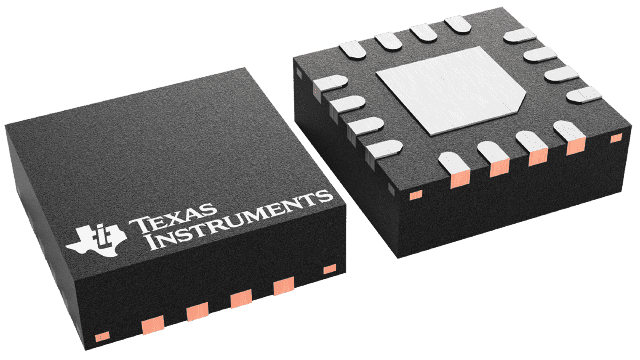

THS4509RGTR Texas Instruments - Yeehing Electronics
1.9-GHz, Wideband, Low-Noise, Low-Distortion, Fully-Differential Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.234 |
| 100 — 249 | 5.082 |
| 250 — 999 | 3.994 |
| 1,000 + | 2.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | THS4509 |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 3 GHz |
| SR - Slew Rate | 6.6 kV/us |
| CMRR - Common Mode Rejection Ratio | 90 dB |
| Output Current per Channel | 440 mA |
| Ib - Input Bias Current | 15.5 uA |
| Vos - Input Offset Voltage | 4 mV |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Amplifier Type | Differential |
| Features | Shutdown |
| Product | Differential Amplifiers |
| Brand | Texas Instruments |
| Input Voltage Range - Max | Positive Rail - 0.75 V (typ) |
| Development Kit | THS4509EVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5.25 V |
| Pd - Power Dissipation | 2300 mW |
| Product Type | Differential Amplifiers |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000850 oz |
For more information, please refer to datasheet
Documents
| THS4509RGTR Datasheet |
More Information
The THS4509 device is a wideband, fully-differential op amp designed for 5-V data acquisition systems. It has a low noise at 1.9 nV/√Hz, and low harmonic distortion of –75 dBc HD2 and –80 dBc HD3 at 100 MHz with 2 VPP, G = 10 dB, and 1-kΩ load. Slew rate is high at 6600 V/µs, and with settling time of 2 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for a minimum gain of 6 dB, but is optimized for gains of 10 dB.
