Texas Instruments
THS4513RGTR
THS4513RGTR
Regular price
$3.03 USD
Regular price
Sale price
$3.03 USD
Unit price
per
Couldn't load pickup availability

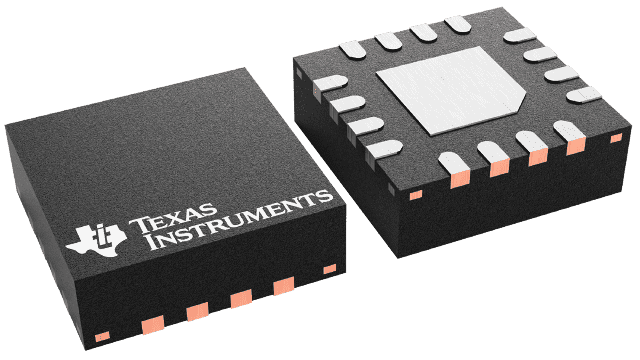

THS4513RGTR Texas Instruments - Yeehing Electronics
1.6-GHz, min gain 1-V/V, low-noise, low distortion fully differential amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.962 |
| 100 — 249 | 6.491 |
| 250 — 999 | 5.102 |
| 1,000 + | 3.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Supply Voltage - Max | 5 V |
| Output Current per Channel | 96 mA |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 2.8 GHz |
| SR - Slew Rate | 5.1 kV/us |
| CMRR - Common Mode Rejection Ratio | 90 dB |
| Ib - Input Bias Current | 15.5 uA |
| Vos - Input Offset Voltage | 4 mV |
| Supply Voltage - Min | 3 V |
| Operating Supply Current | 40.9 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Shutdown | No Shutdown |
| Series | THS4513 |
| Packaging | Reel |
| Amplifier Type | Wideband Amplifier |
| Features | Shutdown |
| Height | 0.9 mm |
| Length | 3 mm |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Width | 3 mm |
| Brand | Texas Instruments |
| en - Input Voltage Noise Density | 2.2 nV/sqrt Hz |
| In - Input Noise Current Density | 1.7 pA/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 2.5 V |
| Minimum Dual Supply Voltage | +/- 1.5 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5 V, +/- 1.5 V to +/- 2.5 V |
| Pd - Power Dissipation | 2300 mW |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 90 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail + 0.75 V (typ) to Positive Rail - 0.75 V (typ) |
| Voltage Gain dB | 63 dB |
| Unit Weight | 0.000850 oz |
For more information, please refer to datasheet
Documents
| THS4513RGTR Datasheet |
More Information
The THS4513 is a wideband, fully-differential op amp designed for 3.3-V to 5-V data acquisition systems. It has very low noise at 2.2 nV/√Hz, and extremely low harmonic distortion of –75 dBc HD2 and –86 dBc HD3 at 70 MHz with 2-VPP output, G = 0 dB, and 200- load. Slew rate is very high at 5100 V/μs and with settling time of 2.9 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for a minimum gain of 0 dB.
