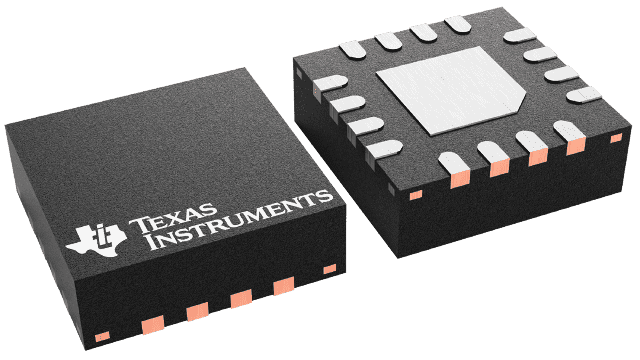

THS4520RGTR Texas Instruments - Yeehing Electronics
Rail-to-Rail Output Wideband Fully Differential Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.044 |
| 100 — 249 | 4.42 |
| 250 — 999 | 3.099 |
| 1,000 + | 1.75 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | THS4520 |
| GBP - Gain Bandwidth Product | 1.2 GHz |
| SR - Slew Rate | 570 V/us |
| CMRR - Common Mode Rejection Ratio | 84 dB |
| Output Current per Channel | 105 mA |
| Ib - Input Bias Current | 10 uA |
| Vos - Input Offset Voltage | 2.5 mV |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 3 V |
| Operating Supply Current | 14.2 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Features | Shutdown |
| Height | 0.9 mm |
| Length | 3 mm |
| Output Type | Rail-to-Rail |
| Product | Differential Amplifiers |
| Supply Type | Single |
| Width | 3 mm |
| Brand | Texas Instruments |
| Development Kit | THS4520EVM |
| Gain V/V | 1 V/V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5.25 V |
| Product Type | Differential Amplifiers |
| PSRR - Power Supply Rejection Ratio | 94 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 112 dB |
| Unit Weight | 0.000850 oz |
For more information, please refer to datasheet
Documents
| THS4520RGTR Datasheet |
More Information
The THS4520 is a wideband, fully differential operational amplifier designed for 5-V data acquisition systems. It has very low noise at 2 nV/ load. The slew rate is 570 V/µs, and with a settling time of 7 ns to 0.1% (2-V step), it is ideal for data acquisition applications. It is designed for unity gain stability.
