Texas Instruments
THS4524MDBTREP
THS4524MDBTREP
Regular price
$5.44 USD
Regular price
Sale price
$5.44 USD
Unit price
per
Couldn't load pickup availability

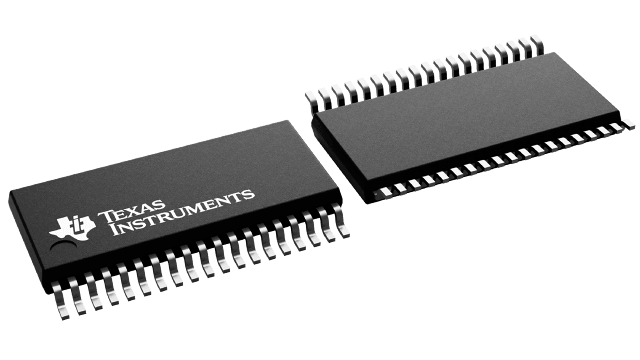

THS4524MDBTREP Texas Instruments - Yeehing Electronics
Enhanced Product very low power quad channel rail-to-rail output fully differential amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.902 |
| 100 — 249 | 11.269 |
| 250 — 999 | 8.689 |
| 1,000 + | 5.44 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | THS4524-EP |
| SR - Slew Rate | 490 V/us |
| CMRR - Common Mode Rejection Ratio | 80 dB to 102 dB |
| Ib - Input Bias Current | 5.5 uA |
| Vos - Input Offset Voltage | 8 mV |
| Operating Supply Current | 1.15 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-38 |
| Packaging | Reel |
| Features | Shutdown |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Differential Amplifiers |
| Brand | Texas Instruments |
| Input Voltage Range - Max | 5.5 V |
| Gain V/V | 0.99 V/V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5.5 V |
| Product Type | Differential Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Part # Aliases | V62/12612-01XE |
| Unit Weight | 0.007189 oz |
For more information, please refer to datasheet
Documents
| THS4524MDBTREP Datasheet |
More Information
The THS4524 is a very low-power, fully differential operational amplifier with rail-to-rail output and an input common-mode range that includes the negative rail. This amplifier is designed for low-power data acquisition systems and high-density applications where power dissipation is a critical parameter, and provide exceptional performance in audio applications.
