Texas Instruments

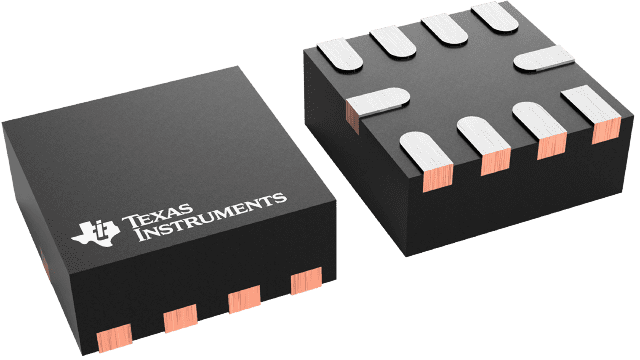

THS4531IRUNR
THS4531IRUNR
Regular price
$0.77 USD
Regular price
Sale price
$0.77 USD
Unit price
per
Couldn't load pickup availability
THS4531IRUNR Texas Instruments - Yeehing Electronics
Ultra low power 0.25mA, RRO, fully differential amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.222 |
| 100 — 249 | 1.947 |
| 250 — 999 | 1.365 |
| 1,000 + | 0.77 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | THS4531 |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 27 MHz |
| SR - Slew Rate | 220 V/us |
| CMRR - Common Mode Rejection Ratio | 116 dB |
| Output Current per Channel | 50 mA |
| Ib - Input Bias Current | 233 nA |
| Vos - Input Offset Voltage | 1 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| Operating Supply Current | 250 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-10 |
| Packaging | Reel |
| Output Type | Rail-to-Rail |
| Product | Differential Amplifiers |
| Brand | Texas Instruments |
| Input Voltage Range - Max | 5.5 V |
| Shutdown | No Shutdown |
| Gain V/V | 0.996 V/V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Product Type | Differential Amplifiers |
| PSRR - Power Supply Rejection Ratio | 108 dB |
| Settling Time | 25 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
| THS4531IRUNR Datasheet |
