Description

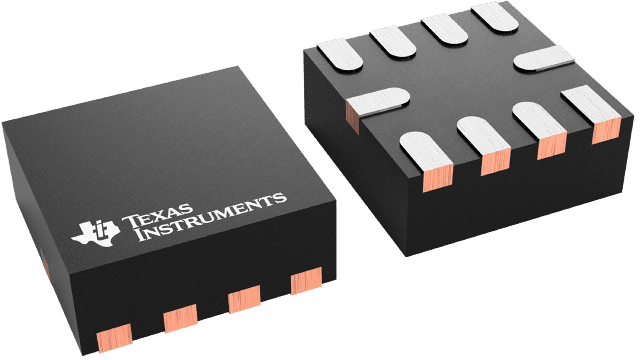

THS4541IRUNR Texas Instruments - Yeehing Electronics
High-Speed Differential I/O Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.935 |
| 100 — 249 | 4.023 |
| 250 — 999 | 3.162 |
| 1,000 + | 0.66 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | THS4541 |
| SR - Slew Rate | 1.5 kV/us |
| CMRR - Common Mode Rejection Ratio | 85 dB to 100 dB |
| Vos - Input Offset Voltage | 0.45 mV |
| Operating Supply Current | 10.1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | WQFN-10 |
| Packaging | Reel |
| Features | Small Size, Shutdown |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Differential Amplifiers |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Differential Amplifiers |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000317 oz |
For more information, please refer to datasheet
Documents
| THS4541IRUNR Datasheet |
More Information
The THS4541 is a low-power, voltage-feedback, fully differential amplifier (FDA) with an input common-mode range below the negative rail, and rail-to-rail output. Designed for low-power data acquisition systems where high density is critical in a high-performance analog-to-digital converter (ADC) or digital-to-analog converter (DAC) interface design.
