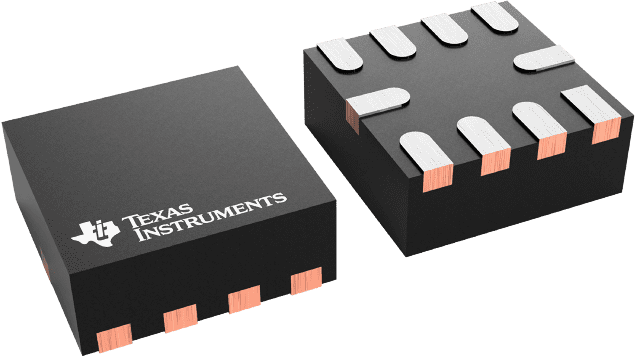

THS4551IRUNT


YeeHing #: Y001-THS4551IRUNT
Inventory: 8800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

THS4551IRUNT Texas Instruments - Yeehing Electronics

Low Noise, Precision, 150MHz, Fully Differential Amplifier

Pricing (USD)

Quantity Unit Price
1 — 99 4.019
100 — 249 3.276
250 — 999 2.575
1,000 + 1.53

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Differential Amplifiers
RoHS Y
Series THS4551
Number of Channels 1 Channel
GBP - Gain Bandwidth Product 135 MHz
SR - Slew Rate 220 V/us
CMRR - Common Mode Rejection Ratio 93 dB to 110 dB
Output Current per Channel 65 mA
Ib - Input Bias Current 2 uA
Vos - Input Offset Voltage 0.175 mV
Supply Voltage - Max 5.4 V
Supply Voltage - Min 2.7 V
Operating Supply Current 1.37 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case QFN-10
Packaging Reel
Features Small Size, Shutdown
Input Type Rail-to-Rail
Output Type Rail-to-Rail
Product Differential Amplifiers
Brand Texas Instruments
Shutdown Shutdown
3 dB Bandwidth 150 MHz
en - Input Voltage Noise Density 3.3 nV/sqrt Hz
Gain V/V 999 mV/V
In - Input Noise Current Density 500 fA/sqrt Hz
Ios - Input Offset Current 78 nA
Moisture Sensitive Yes
Product Type Differential Amplifiers
Settling Time 50 ns
Factory Pack Quantity 250
Subcategory Amplifier ICs
Unit Weight 0.000409 oz

For more information, please refer to datasheet

Documents

THS4551IRUNT Datasheet

More Information

The THS4551 fully differential amplifier offers an easy interface from single-ended sources to the differential output required by high-precision analog-to-digital converters (ADCs). Designed for exceptional dc accuracy, low noise, and robust capacitive load driving, this device is well suited for data acquisition systems where high precision is required along with the best signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR) through the amplifier and ADC combination.
