Description

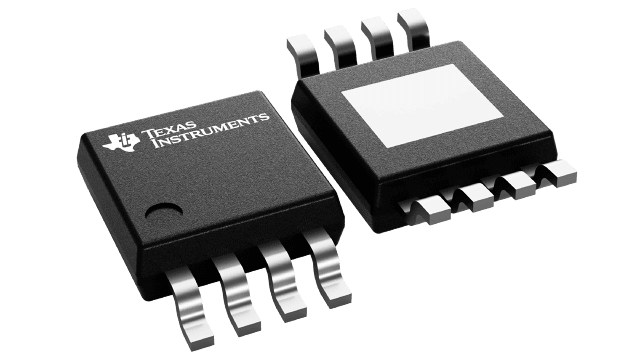

THS4631DGN Texas Instruments - Yeehing Electronics
High Speed FET-Input Operational Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.815 |
100 — 249 | 5.556 |
250 — 999 | 4.367 |
1,000 + | 2.59 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
THS4631DGN Datasheet |
More Information
The THS4631 is a high-speed, FET-input operational amplifier designed for applications requiring wideband operation, high-input impedance, and high-power supply voltages. By providing a 210-MHz gain bandwidth product, ±15-V supply operation, and 100-pA input bias current, the THS4631 is capable of simultaneous wideband transimpedance gain and large output signal swing. The fast 1000 V/µs slew rate allows for fast settling times and good harmonic distortion at high frequencies. Low current and voltage noise allow amplification of extremely low-level input signals while still maintaining a large signal-to-noise ratio.
