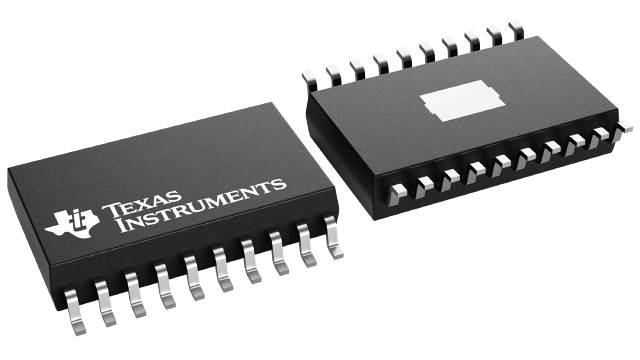

THS6002CDWP Texas Instruments - Yeehing Electronics

Dual Differential DSL Line Driver/Receiver

Pricing (USD)

Quantity	Unit Price
1 — 99	12.618
100 — 249	11.021
250 — 999	8.498
1,000 +	6.08

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	High Speed Operational Amplifiers
RoHS	Y
Series	THS6002
Number of Channels	2 Channel
SR - Slew Rate	1 kV/us
CMRR - Common Mode Rejection Ratio	62 dB to 70 dB
Vos - Input Offset Voltage	4 mV
Supply Voltage - Max	33 V
Supply Voltage - Min	9 V
Operating Supply Current	11.5 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HSOP-20
Packaging	Tube
Brand	Texas Instruments
Development Kit	THS6002EVM
Moisture Sensitive	Yes
Operating Supply Voltage	33 V
Pd - Power Dissipation	5800 mW
Product Type	Op Amps - High Speed Operational Amplifiers
Factory Pack Quantity	25
Subcategory	Amplifier ICs
Unit Weight	0.017870 oz

For more information, please refer to datasheet

Documents

THS6002CDWP Datasheet

More Information

The THS6002 contains two high-current, high-speed drivers and two high-speed receivers. These drivers and receivers can be configured differentially for driving and receiving signals over low-impedance lines. The THS6002 is ideally suited for asymmetrical digital subscriber line (ADSL) applications where it supports the high-peak voltage and current requirements of that application. Both the drivers and the receivers are current feedback amplifiers designed for the high slew rates necessary to support low total harmonic distortion (THD) in ADSL applications. Separate power supply connections for each driver are provided to minimize crosstalk.
