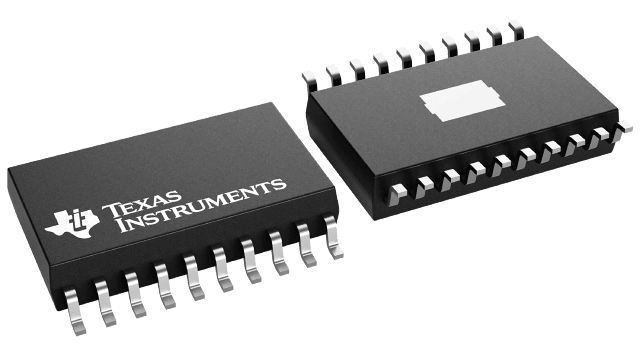

THS6012IDWPR Texas Instruments - Yeehing Electronics
500-mA Dual Differential DSL and PLC Line Driver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.777 |
100 — 249 | 5.525 |
250 — 999 | 4.342 |
1,000 + | 2.58 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | High Speed Operational Amplifiers |
RoHS | Y |
Series | THS6012 |
Number of Channels | 2 Channel |
SR - Slew Rate | 1.3 kV/us |
CMRR - Common Mode Rejection Ratio | 62 dB to 70 dB |
Vos - Input Offset Voltage | 5 mV |
Supply Voltage - Max | 33 V |
Supply Voltage - Min | 9 V |
Operating Supply Current | 11.5 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | HSOP-20 |
Packaging | Reel |
Output Type | Differential |
Brand | Texas Instruments |
Development Kit | THS6012EVM |
Moisture Sensitive | Yes |
Operating Supply Voltage | 33 V |
Pd - Power Dissipation | 5800 mW |
Product Type | Op Amps - High Speed Operational Amplifiers |
Factory Pack Quantity | 2000 |
Subcategory | Amplifier ICs |
Unit Weight | 0.017870 oz |
For more information, please refer to datasheet
Documents
THS6012IDWPR Datasheet |
More Information
The THS6012 contains two high-speed drivers capable of providing 400 mA output current (min) into a 25 Ω load. These drivers can be configured differentially to drive a 50-VPP output signal over low-impedance lines. The drivers are current feedback amplifiers, designed for the high slew rates necessary to support low total harmonic distortion (THD) in xDSL applications. The THS6012 is ideally suited for asymmetrical digital subscriber line (ADSL) applications at the central office, where it supports the high-peak voltage and current requirements of this application.
