Texas Instruments

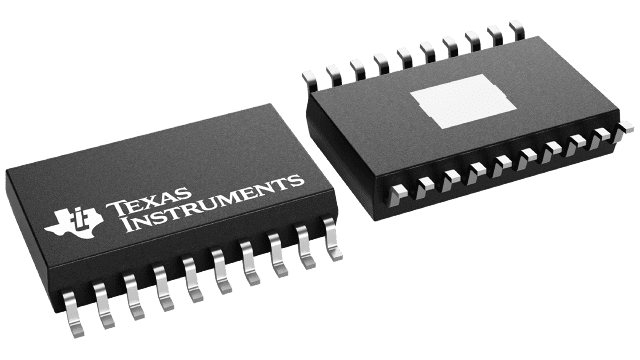

THS6032IDWP
THS6032IDWP
Regular price
$6.00 USD
Regular price
Sale price
$6.00 USD
Unit price
per
Couldn't load pickup availability
THS6032IDWP Texas Instruments - Yeehing Electronics
Low-Power, Dual Class G Amplifier and DSL/PLC Line Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 14.22 |
| 100 — 249 | 12.421 |
| 250 — 999 | 9.577 |
| 1,000 + | 6.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | High Speed Operational Amplifiers |
| RoHS | Y |
| Series | THS6032 |
| Number of Channels | 2 Channel |
| SR - Slew Rate | 1.2 kV/us |
| CMRR - Common Mode Rejection Ratio | 64 dB to 72 dB |
| Vos - Input Offset Voltage | 5 mV |
| Supply Voltage - Max | 16.5 V |
| Supply Voltage - Min | 5 V |
| Operating Supply Current | 8.3 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HSOP-20 |
| Packaging | Tube |
| Features | Shutdown |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 33 V |
| Pd - Power Dissipation | 5800 mW |
| Product Type | Op Amps - High Speed Operational Amplifiers |
| Factory Pack Quantity | 25 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.017870 oz |
For more information, please refer to datasheet
Documents
| THS6032IDWP Datasheet |
More Information
The THS6032 is a low-power line driver ideal for asymmetrical digital subscriber line (ADSL) applications. This device contains two high-current, high-speed current-feedback drivers, which can be configured differentially for driving ADSL signals at the central office. The THS6032 features a unique class-G architecture to lower power consumption to 1.35 W. The THS6032 can also be operated in a traditional class-AB mode to reduce the number of power supplies to two.
