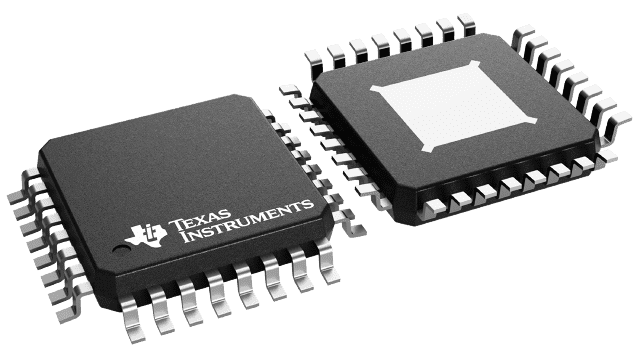

THS6132VFP Texas Instruments - Yeehing Electronics
High Efficiency Class-G ADSL and PLC Line Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.793 |
| 100 — 249 | 5.538 |
| 250 — 999 | 4.353 |
| 1,000 + | 2.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | High Speed Operational Amplifiers |
| RoHS | Y |
| Number of Channels | 2 Channel |
| SR - Slew Rate | 300 V/us |
| CMRR - Common Mode Rejection Ratio | 60 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HLQFP-32 |
| Packaging | Reel |
| Amplifier Type | Drivers |
| Output Type | Differential |
| Product | Operational Amplifiers |
| Supply Type | Dual |
| Brand | Texas Instruments |
| Topology | Current Feedback Amplifier |
| 3 dB Bandwidth | 80 MHz |
| Dual Supply Voltage | +/- 3.3 V to +/- 16 V |
| Maximum Dual Supply Voltage | +/- 16 V |
| Minimum Dual Supply Voltage | +/- 3.3 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 33 V |
| Pd - Power Dissipation | 3.57 W |
| Product Type | Op Amps - High Speed Operational Amplifiers |
| Factory Pack Quantity | 1 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.006300 oz |
For more information, please refer to datasheet
Documents
| THS6132VFP Datasheet |
More Information
The THS6132 is a Class-G current feedback differential line driver ideal for full rate ADSL DMT systems. Its extremely low power consumption of 600 mW or lower is ideal for ADSL systems that must achieve high densities in ADSL central office rack applications. The unique patent pending architecture of the THS6132 allows the quiescent current to be much lower than existing line drivers while still achieving very high linearity. In addition, the multiple bias settings of the amplifiers allow for even lower power consumption for line lengths where the full performance of the amplifier is not required. The output voltage swing has been vastly improved over first generation Glass-G amplifiers and allows the use of lower power supply voltages that help conserve power. For maximum flexibility, the THS6132 can be configured in classical Class-AB mode requiring only as few as one power supply.
