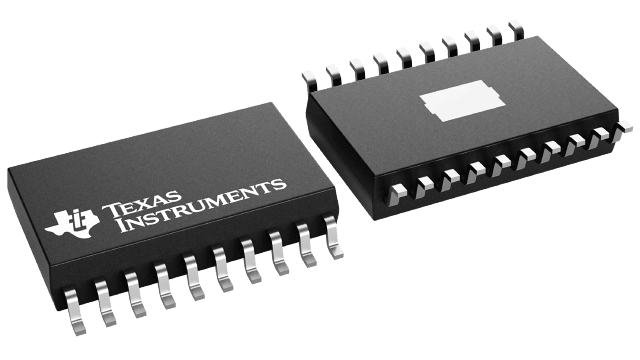

THS6182DWPR


YeeHing #: Y001-THS6182DWPR
Inventory: 5200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

THS6182DWPR Texas Instruments - Yeehing Electronics

Low Power ADSL and PLC Line Driver

Pricing (USD)

Quantity Unit Price
1 — 99 6.9
100 — 249 5.625
250 — 999 4.421
1,000 + 2.62

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category High Speed Operational Amplifiers
RoHS Y
Series THS6182
Number of Channels 2 Channel
SR - Slew Rate 450 V/us
CMRR - Common Mode Rejection Ratio 48 dB to 54 dB
Vos - Input Offset Voltage 20 mV
Supply Voltage - Max 30 V
Supply Voltage - Min 10 V
Operating Supply Current 11.5 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case HSOP-20
Packaging Reel
Output Type Differential
Brand Texas Instruments
Development Kit THS6182DWEVM
Moisture Sensitive Yes
Operating Supply Voltage 33 V
Product Type Op Amps - High Speed Operational Amplifiers
Factory Pack Quantity 2000
Subcategory Amplifier ICs
Unit Weight 0.017870 oz

For more information, please refer to datasheet

Documents

THS6182DWPR Datasheet

More Information

The THS6182 is a current feedback differential line driver ideal for full rate ADSL systems. Its extremely low-power dissipation is ideal for ADSL systems that must achieve high densities in ADSL central office rack applications. The unique architecture of the THS6182 allows the quiescent current to be much lower than existing line drivers while still achieving high linearity without the need for excess open loop gain. Fixed multiple bias settings of the amplifiers allow for enhanced power savings for line lengths where the full performance of the amplifier is not required. To allow for even more flexibility and power savings, an IADJ pin is available to further lower the bias currents while maintaining stable operation with as little as 1.8 mA per channel. The wide output swing of 44 VPP differentially with ±12-V power supplies allows for more dynamic headroom, keeping distortion at a minimum. With a low 3.2 nV/Hz inverting current noise, the THS6182 increases the sensitivity of the receive signals, allowing for better margins and reach.
