THS6182RHFR Texas Instruments - Yeehing Electronics

Low Power ADSL and PLC Line Driver

Pricing (USD)

Quantity	Unit Price
1 — 99	6.9
100 — 249	5.625
250 — 999	4.421
1,000 +	2.62

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	High Speed Operational Amplifiers
RoHS	Y
Series	THS6182
Number of Channels	2 Channel
SR - Slew Rate	450 V/us
CMRR - Common Mode Rejection Ratio	48 dB to 54 dB
Vos - Input Offset Voltage	20 mV
Supply Voltage - Max	30 V
Supply Voltage - Min	10 V
Operating Supply Current	11.5 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

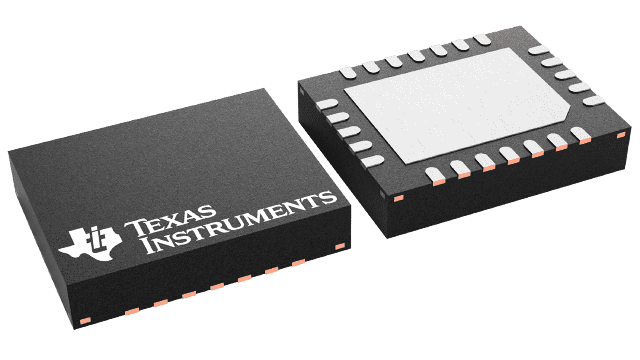

Package / Case	VQFN-24
Packaging	Reel
Output Type	Differential
Brand	Texas Instruments
Development Kit	THS6182DWEVM
Moisture Sensitive	Yes
Operating Supply Voltage	33 V
Product Type	Op Amps - High Speed Operational Amplifiers
Factory Pack Quantity	3000
Subcategory	Amplifier ICs
Unit Weight	0.001926 oz

For more information, please refer to datasheet

Documents

THS6182RHFR Datasheet

More Information

The THS6182 is a current feedback differential line driver ideal for full rate ADSL systems. Its extremely low-power dissipation is ideal for ADSL systems that must achieve high densities in ADSL central office rack applications. The unique architecture of the THS6182 allows the quiescent current to be much lower than existing line drivers while still achieving high linearity without the need for excess open loop gain. Fixed multiple bias settings of the amplifiers allow for enhanced power savings for line lengths where the full performance of the amplifier is not required. To allow for even more flexibility and power savings, an IADJ pin is available to further lower the bias currents while maintaining stable operation with as little as 1.8 mA per channel. The wide output swing of 44 VPP differentially with ±12-V power supplies allows for more dynamic headroom, keeping distortion at a minimum. With a low 3.2 nV/Hz inverting current noise, the THS6182 increases the sensitivity of the receive signals, allowing for better margins and reach.
