Texas Instruments

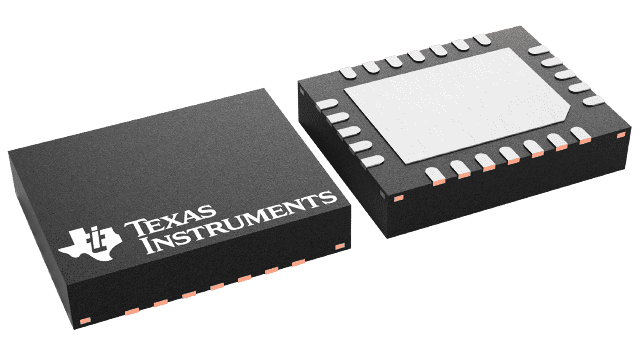

THS6204IRHFT
THS6204IRHFT
Regular price
$1.26 USD
Regular price
Sale price
$1.26 USD
Unit price
per
Couldn't load pickup availability
THS6204IRHFT Texas Instruments - Yeehing Electronics
Dual Port VDSL2 Differential Line Driver Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.636 |
| 100 — 249 | 3.186 |
| 250 — 999 | 2.234 |
| 1,000 + | 1.26 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | High Speed Operational Amplifiers |
| RoHS | Y |
| Series | THS6204 |
| Number of Channels | 2 Channel |
| SR - Slew Rate | 3.8 kV/us |
| CMRR - Common Mode Rejection Ratio | 53 dB to 65 dB |
| Vos - Input Offset Voltage | 50 mV |
| Supply Voltage - Max | 28 V |
| Supply Voltage - Min | 5 V |
| Operating Supply Current | 21 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Features | Shutdown |
| Output Type | Differential |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 12 V |
| Pd - Power Dissipation | 3280 mW |
| Product Type | Op Amps - High Speed Operational Amplifiers |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
| THS6204IRHFT Datasheet |
More Information
The THS6204 is a dual-port, current-feedback architecture, differential line driver amplifier system ideal for xDSL systems. The device is targeted for use in VDSL2 (very-high-bit-rate digital subscriber line 2) line driver systems that enable greater than +20.5dBm line power up to 8.5MHz with good linearity supporting the G.993.2 VDSL2 8b profile. It is also fast enough to support central-office transmission of +14.5dBm line power up to 18.1MHzProfile 30a.
