Texas Instruments

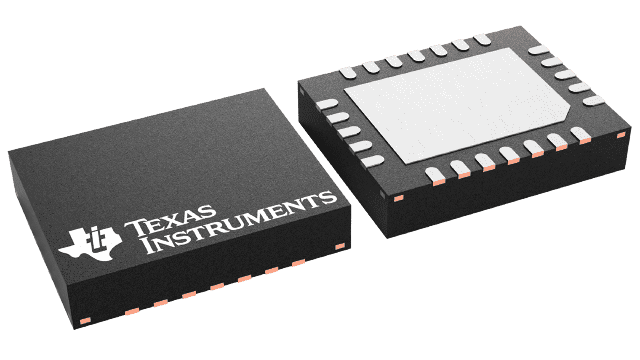

THS6212IRHFR
THS6212IRHFR
Regular price
$0.69 USD
Regular price
Sale price
$0.69 USD
Unit price
per
Couldn't load pickup availability
THS6212IRHFR Texas Instruments - Yeehing Electronics
High Speed, Differential Broadband PLC/HPLC Line Driver Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.218 |
| 100 — 249 | 1.832 |
| 250 — 999 | 1.316 |
| 1,000 + | 0.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | THS6212 |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 150 MHz |
| SR - Slew Rate | 3.8 kV/us |
| CMRR - Common Mode Rejection Ratio | 53 dB to 65 dB |
| Vos - Input Offset Voltage | 50 mV |
| Supply Voltage - Max | 28 V |
| Supply Voltage - Min | 10 V |
| Operating Supply Current | 21 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Amplifier Type | Differential Line Driver |
| Features | Shutdown |
| Product | Differential Amplifiers |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Gain V/V | 10 V/V |
| Moisture Sensitive | Yes |
| Product Type | Differential Amplifiers |
| PSRR - Power Supply Rejection Ratio | 50 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.001785 oz |
For more information, please refer to datasheet
Documents
| THS6212IRHFR Datasheet |
More Information
The THS6212 is a differential line-driver amplifier with a current-feedback architecture. The device is targeted for use in broadband, wideband power line communications (PLC) line driver applications and is fast enough to support transmissions of 14.5-dBm line power up to 30 MHz.
