Description
THS6212IRHFT Texas Instruments - Yeehing Electronics
High Speed, Differential Broadband PLC/HPLC Line Driver Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.661 |
100 — 249 | 2.198 |
250 — 999 | 1.579 |
1,000 + | 0.83 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Differential Amplifiers |
RoHS | Y |
Series | THS6212 |
Number of Channels | 2 Channel |
GBP - Gain Bandwidth Product | 150 MHz |
SR - Slew Rate | 3.8 kV/us |
CMRR - Common Mode Rejection Ratio | 53 dB to 65 dB |
Output Current per Channel | 1 A |
Ib - Input Bias Current | 8 uA |
Vos - Input Offset Voltage | 50 mV |
Supply Voltage - Max | 28 V |
Supply Voltage - Min | 10 V |
Operating Supply Current | 21 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |

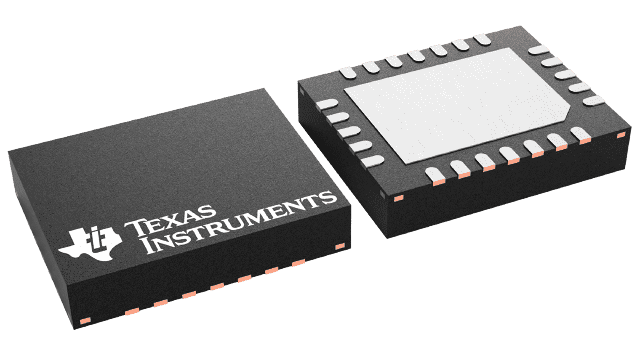

Package / Case | VQFN-24 |
Packaging | Reel |
Amplifier Type | Differential Line-Driver |
Features | Shutdown |
Product | Differential Amplifiers |
Brand | Texas Instruments |
Shutdown | Shutdown |
en - Input Voltage Noise Density | 2.7 nV/sqrt Hz |
In - Input Noise Current Density | 1.2 pA/sqrt Hz |
Moisture Sensitive | Yes |
Product Type | Differential Amplifiers |
PSRR - Power Supply Rejection Ratio | 66 dB |
Factory Pack Quantity | 250 |
Subcategory | Amplifier ICs |
Vcm - Common Mode Voltage | 9.5 V |
Unit Weight | 0.001901 oz |
For more information, please refer to datasheet
Documents
THS6212IRHFT Datasheet |
More Information
The THS6212 is a differential line-driver amplifier with a current-feedback architecture. The device is targeted for use in broadband, wideband power line communications (PLC) line driver applications and is fast enough to support transmissions of 14.5-dBm line power up to 30 MHz.
