Texas Instruments
THS7327PHP
THS7327PHP
Couldn't load pickup availability
THS7327PHP Texas Instruments - Yeehing Electronics
3-Channel RGBHV Video Buffer with I2C Control, Selectable Filters, Monitor Pass-Thru, 2:1 MUX
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.757 |
| 100 — 249 | 6.324 |
| 250 — 999 | 4.971 |
| 1,000 + | 3.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Video Amplifiers |
| RoHS | Y |
| Series | THS7327 |
| Number of Channels | 3 Channel |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 100 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

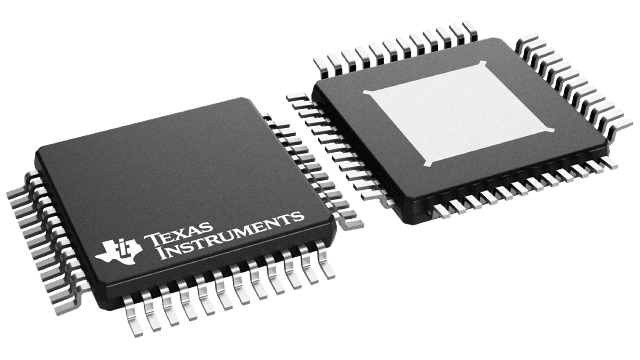

| Package / Case | HTQFP-48 |
| Packaging | Tray |
| Amplifier Type | Integrated Filter Amplifier |
| Height | 1 mm |
| Length | 7 mm |
| Product | Video Amplifiers |
| Supply Type | Single |
| Width | 7 mm |
| Brand | Texas Instruments |
| Development Kit | THS7327EVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Product Type | Video Amplifiers |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.004744 oz |
For more information, please refer to datasheet
Documents
| THS7327PHP Datasheet |
More Information
Fabricated using the new complementary silicon-germanium (SiGe) BiCom-III process, the THS7327 is a low-power, single-supply 2.7-V to 5-V, 3-channel integrated video buffer with H and V Sync signal paths. It incorporates a selectable 5th order Butterworth anti-aliasing filter on each channel. The 9-MHz is a perfect choice for SDTV video including composite, S-Video™, and 480i/576i. The 16-MHz filter is ideal for EDTV 480p/576p and VGA signals. The 35-MHz filter is useful for HDTV 720p/1080i and SVGA signals. The 75-MHz filter is ideal for HDTV 1080p and XGA/SXGA signals. For UXGA/QXGA R’G’B’ signals, the filter can be bypassed allowing a 500-MHz bandwidth, 1150-V/µs amplifier to buffer the signal.
