Texas Instruments

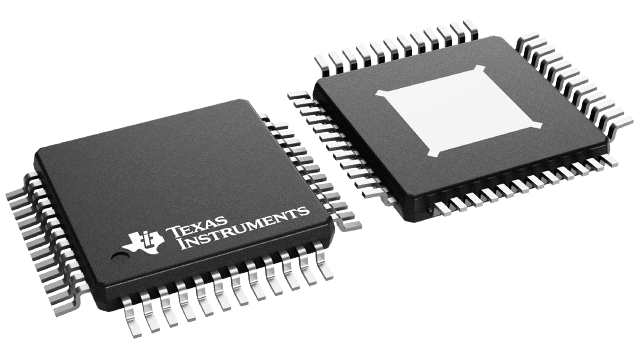

THS7347IPHPR
THS7347IPHPR
Couldn't load pickup availability
THS7347IPHPR Texas Instruments - Yeehing Electronics
3-Channel RGBHV Video Buffer with I2C Control, Monitor Pass-Thru, 2:1 MUX
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.388 |
| 100 — 249 | 4.392 |
| 250 — 999 | 3.452 |
| 1,000 + | 1.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Video Amplifiers |
| RoHS | Y |
| Series | THS7347 |
| Number of Channels | 3 Channel |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 80 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-48 |
| Packaging | Reel |
| Amplifier Type | Integrated Filter Amplifier |
| Height | 1 mm |
| Length | 7 mm |
| Product | Video Amplifiers |
| Supply Type | Single |
| Width | 7 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Product Type | Video Amplifiers |
| Factory Pack Quantity | 1000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.004744 oz |
For more information, please refer to datasheet
Documents
| THS7347IPHPR Datasheet |
More Information
Fabricated using the revolutionary complimentary silicon-germanium (SiGe) BiCom3 process, the THS7347 is a low-power, single-supply 2.7-V to 5-V 3-channel integrated video buffer with horizontal (H) and vertical (V) sync signal paths. It incorporates a 500-MHz bandwidth, 1200-V/µs unity-gain buffer ideal for driving analog-to-digital converters (ADCs) and video decoders. In parallel with the unity-gain buffer, a monitor pass-through path allows for passing the input signal on to other systems. This path has a 6-dB gain, 500-MHz bandwidth, 1300-V/µs slew rate, SAG correction capability, and high output impedance while disabled.
