Texas Instruments
THS9000DRWR
THS9000DRWR
Regular price
$0.39 USD
Regular price
Sale price
$0.39 USD
Unit price
per
Couldn't load pickup availability

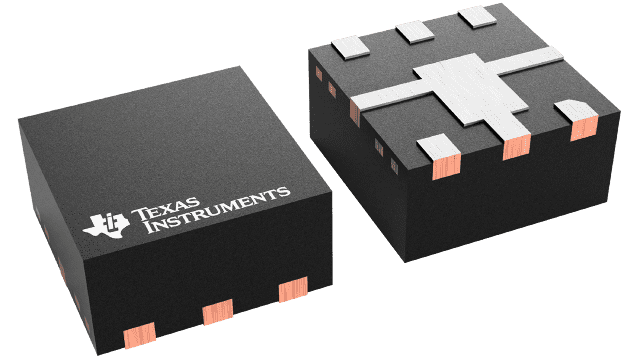

THS9000DRWR Texas Instruments - Yeehing Electronics
50 MHz to 750 MHz Cascadable Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.232 |
| 100 — 249 | 1.018 |
| 250 — 999 | 0.731 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Amplifier |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-6 |
| Type | Cascadable Amplifier |
| Operating Frequency | 50 MHz to 400 MHz |
| P1dB - Compression Point | 20.6 dBm |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| NF - Noise Figure | 4 dB |
| Test Frequency | 350 MHz |
| OIP3 - Third Order Intercept | 35 dBm |
| Operating Supply Current | 100 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | THS9000 |
| Packaging | Reel |
| Bandwidth | 400 MHz |
| Brand | Texas Instruments |
| Number of Channels | 1 Channel |
| Development Kit | THS9000EVM |
| Moisture Sensitive | Yes |
| Product Type | RF Amplifier |
| Factory Pack Quantity | 3000 |
| Subcategory | Wireless & RF Integrated Circuits |
| Supply Voltage - Max | 5 V |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.000907 oz |
For more information, please refer to datasheet
Documents
| THS9000DRWR Datasheet |
More Information
The THS9000 is a medium power, cascadeable, gain block optimized for high IF frequencies. The amplifier incorporates internal impedance matching to 50 Ω. The part mounted on the standard EVM achieves greater than 15-dB input and output return loss from 50 MHz to 325 MHz with VS = 5 V, R(BIAS) = 237 Ω, L(COL) = 470 nH. Design requires only two dc-blocking capacitors, one power-supply bypass capacitor, one RF choke, and one bias resistor.
