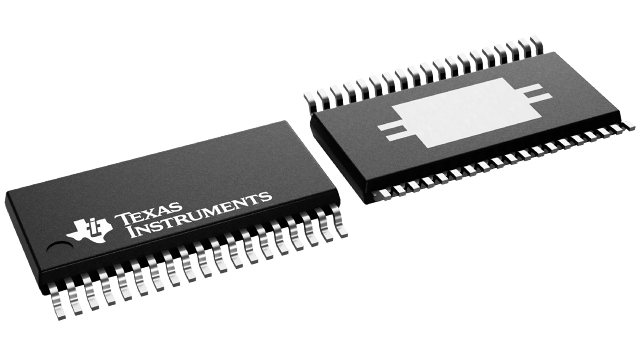

TIC10024QDCPRQ1 Texas Instruments - Yeehing Electronics
Automotive 35-V multi-switch detection interface (MSDI) with SPI
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.229 |
100 — 249 | 1.841 |
250 — 999 | 1.322 |
1,000 + | 0.70 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Interface - Specialized |
RoHS | Y |
Type | Multiple Switch Detection Interface |
Operating Supply Voltage | 4.5 V to 35 V |
Operating Supply Current | 5.6 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-38 |
Packaging | Reel |
Product | Switch Detectors |
Series | TIC10024-Q1 |
Brand | Texas Instruments |
Interface Type | SPI |
Development Kit | TIC12400EVM-KIT |
Moisture Sensitive | Yes |
Product Type | Interface - Specialized |
Factory Pack Quantity | 2000 |
Subcategory | Interface ICs |
Supply Voltage - Max | 35 V |
Supply Voltage - Min | 4.5 V |
Unit Weight | 0.004522 oz |
For more information, please refer to datasheet
Documents
TIC10024QDCPRQ1 Datasheet |
More Information
The TIC10024-Q1 is an advanced Multiple Switch Detection Interface (MSDI) device designed to detect external switch status in a 12-V automotive system. The TIC10024-Q1 features a comparator with adjustable thresholds to monitor digital switches independently of the MCU. The device monitors 24 direct switch inputs, with 10 inputs configurable to monitor switches connected to either ground or battery. There are 6 unique wetting current settings that can be programmed for each input to support different application scenarios. The device supports wake-up operation on all switch inputs to eliminate the need to keep the MCU active continuously, thus reducing power consumption of the system. The TIC10024-Q1 also offers integrated fault detection and ESD protection for improved system robustness. The TIC10024-Q1 supports 2 modes of operations: continuous and polling mode. In continuous mode, wetting current is supplied continuously. In polling mode, wetting current is turned on periodically to sample the input status based on a programmable timer, thus the system power consumption is significantly reduced.
