TIC12400QDCPRQ1


YeeHing #: Y007-TIC12400QDCPRQ1
Inventory: 5800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TIC12400QDCPRQ1 Texas Instruments - Yeehing Electronics

Automotive 35-V multi-switch detection interface (MSDI) with SPI & integrated ADC

Pricing (USD)

Quantity Unit Price
1 — 99 2.664
100 — 249 2.335
250 — 999 1.637
1,000 + 0.92

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Interface - Specialized
RoHS Y
Type Multiple Switch Detection Interface
Operating Supply Voltage 4.5 V to 35 V
Operating Supply Current 5.6 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT

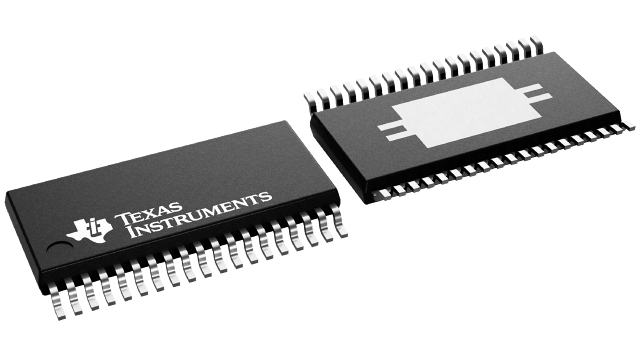

Package / Case HTSSOP-38
Packaging Reel
Product Switch Detectors
Series TIC12400-Q1
Brand Texas Instruments
Interface Type SPI
Development Kit TIC12400EVM-KIT
Moisture Sensitive Yes
Product Type Interface - Specialized
Factory Pack Quantity 2000
Subcategory Interface ICs
Supply Voltage - Max 35 V
Supply Voltage - Min 4.5 V
Unit Weight 0.004522 oz

For more information, please refer to datasheet

Documents

TIC12400QDCPRQ1 Datasheet

More Information

The TIC12400-Q1 is an advanced Multiple Switch Detection Interface (MSDI) designed to detect external switch status in a 12-V automotive system. The TIC12400-Q1 features an integrated 10-bit ADC to monitor multi-position analog switches and a comparator to monitor digital switches independently of the MCU. Detection thresholds can be programmed for the ADC and the comparator to support various switch topologies and system non-idealities. The device monitors 24 direct switch inputs, with 10 inputs configurable to monitor switches connected to either ground or battery. 6 unique wetting current settings can be programmed for each input to support different application scenarios. The device supports wake-up operation on all switch inputs to eliminate the need to keep the MCU active continuously, thus reducing power consumption of the system. The TIC12400-Q1 also offers integrated fault detection, ESD protection, and diagnostic functions for improved system robustness. The TIC12400-Q1 supports 2 modes of operations: continuous and polling mode. In continuous mode, wetting current is supplied continuously. In polling mode, wetting current is turned on periodically to sample the input status based on a programmable timer, thus the system power consumption is significantly reduced.
