Texas Instruments

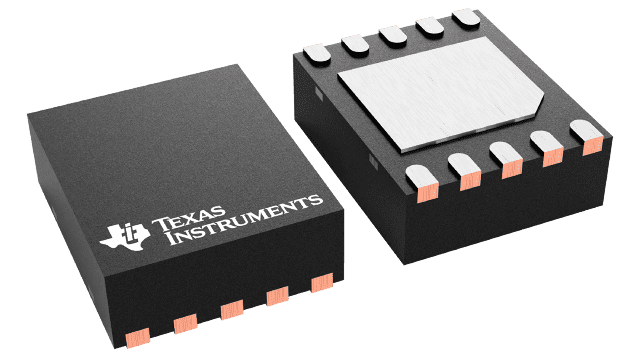

TIOL1113DMWT
TIOL1113DMWT
Regular price
$1.17 USD
Regular price
Sale price
$1.17 USD
Unit price
per
Couldn't load pickup availability
TIOL1113DMWT Texas Instruments - Yeehing Electronics
IO-Link device transceiver with integrated surge protection and 3.3-V LDO output
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.975 |
| 100 — 249 | 3.483 |
| 250 — 999 | 2.442 |
| 1,000 + | 1.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Sensor Interface |
| RoHS | Y |
| Type | IO-Link Device Transceiver |
| Interface Type | 3-Wire |
| Supply Voltage - Max | 36 V |
| Supply Voltage - Min | 7 V |
| Operating Supply Current | 2 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Packaging | Reel |
| Features | Reverse polarity protection, Configurable current limiter, Remote wakeup |
| Output Current | 350 mA |
| Output Voltage | 3.3 V |
| Product | IO-Link Transceivers |
| Series | TIOL111 |
| Brand | Texas Instruments |
| Number of Channels | 1 Channel |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 24 V |
| Product Type | Sensor Interface |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000670 oz |
For more information, please refer to datasheet
Documents
| TIOL1113DMWT Datasheet |
More Information
The TIOL111(x) family of transceivers implements the IO-Link interface for industrial bidirectional, point-to-point communication. When the device is connected to an IO-Link master through a three-wire interface, the master can initiate communication and exchange data with the remote node while the TIOL111(x) acts as a complete physical layer for the communication.
