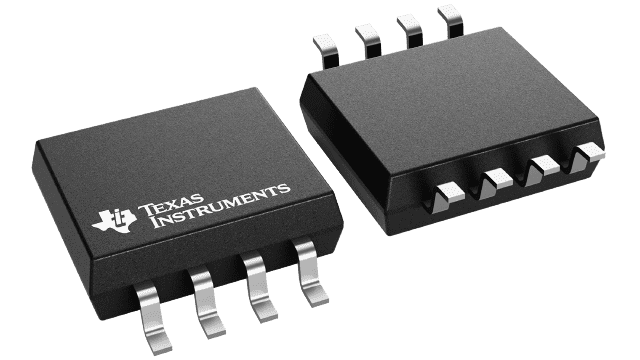

TL092CPSR Texas Instruments - Yeehing Electronics
Dual, 36-V, 1-MHz, In to V- operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.892 |
| 100 — 249 | 0.686 |
| 250 — 999 | 0.505 |
| 1,000 + | 0.25 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SO-8 |
| Supply Voltage - Max | 36 V |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 1 MHz |
| SR - Slew Rate | 0.6 V/us |
| CMRR - Common Mode Rejection Ratio | 70 dB to 90 dB |
| Ib - Input Bias Current | 400 pA |
| Vos - Input Offset Voltage | 15 mV |
| Supply Voltage - Min | 3 V |
| Operating Supply Current | 1.5 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Shutdown | No Shutdown |
| Series | TL092 |
| Packaging | Reel |
| Amplifier Type | General Purpose Amplifier |
| Height | 1.95 mm |
| Input Type | Rail-to-Rail |
| Length | 6.2 mm |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Technology | BiFET |
| Width | 5.3 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 3 V, +/- 5 V, +/- 9 V |
| en - Input Voltage Noise Density | 34 nV/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 18 V |
| Minimum Dual Supply Voltage | +/- 1.5 V |
| Operating Supply Voltage | 3 V to 36 V, +/- 1.5 V to +/- 18 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail to Positive Rail - 3 V |
| Voltage Gain dB | 106.02 dB |
| Unit Weight | 0.004325 oz |
For more information, please refer to datasheet
Documents
| TL092CPSR Datasheet |
More Information
The TL092 JFET-input operational amplifier is similar in performance to the MC3403 family, but with much higher input impedance derived from a FET input stage. The N-channel-JFET input stage allows a common-mode input voltage range that includes the negative supply voltage and offers a typical input impedance of 1012 , a typical input offset current of 50 pA, and a typical input bias current of 200 pA. This device is designed to operate from a single supply over a range of 3 V to 36 V. Operation from split supplies also is possible, provided the difference between the two supplies is 3 V to 36 V. Output voltage range is from VCC to VCC+ 1.3 V, with a load resistor to VCC.
