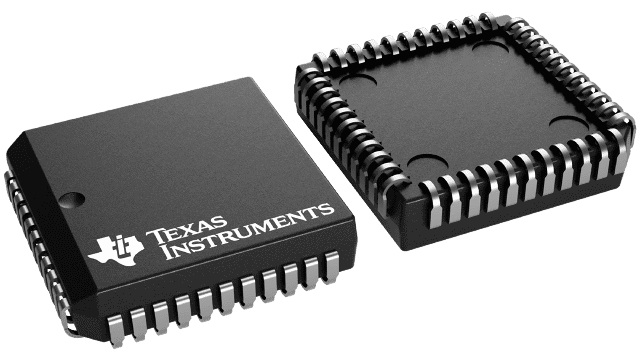

TL16C2552FN


YeeHing #: Y007-TL16C2552FN
Inventory: 5000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TL16C2552FN Texas Instruments - Yeehing Electronics

1.8-V to 5-V Dual UART with 16-Byte FIFOs

Pricing (USD)

Quantity Unit Price
1 — 99 6.17
100 — 249 5.03
250 — 999 3.953
1,000 + 2.68

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category UART Interface IC
RoHS Y
Number of Channels 2 Channel
Data Rate 1.5 Mb/s
Memory Size 16 B
Supply Voltage - Max 5.5 V
Supply Voltage - Min 1.62 V
Operating Supply Current 7.5 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case PLCC-44
Packaging Reel
Height 4.06 mm
Length 16.59 mm
Series TL16C2552
Width 16.59 mm
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Voltage 1.8 V, 2.5 V, 3.3 V, 5 V
Product Type UART Interface IC
Factory Pack Quantity 500
Subcategory Interface ICs
Unit Weight 0.079920 oz

For more information, please refer to datasheet

Documents

TL16C2552FN Datasheet

More Information

The TL16C2552 is a dual universal asynchronous receiver and transmitter (UART). It incorporates the functionality of two TL16C550D UARTs, each UART having its own register set and FIFOs. The two UARTs share only the data bus interface and clock source, otherwise they operate independently. Another name for the UART function is Asynchronous Communications Element (ACE), and these terms will be used interchangeably. The bulk of this document describes the behavior of each ACE, with the understanding that two such devices are incorporated into the TL16C2552.
