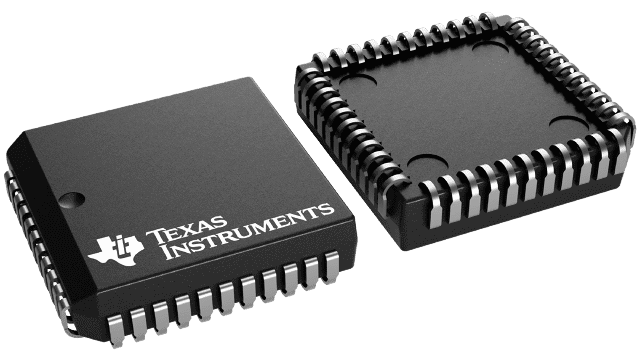

TL16C2552IFNR Texas Instruments - Yeehing Electronics

1.8-V to 5-V Dual UART with 16-Byte FIFOs

Pricing (USD)

Quantity	Unit Price
1 — 99	5.527
100 — 249	4.506
250 — 999	3.542
1,000 +	2.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	UART Interface IC
RoHS	Y
Number of Channels	2 Channel
Data Rate	1.5 Mb/s
Memory Size	16 B
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.62 V
Operating Supply Current	7.5 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	PLCC-44
Packaging	Reel
Height	4.06 mm
Length	16.59 mm
Series	TL16C2552
Width	16.59 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	1.8 V, 2.5 V, 3.3 V, 5 V
Product Type	UART Interface IC
Factory Pack Quantity	500
Subcategory	Interface ICs
Unit Weight	0.079920 oz

For more information, please refer to datasheet

Documents

TL16C2552IFNR Datasheet

More Information

The TL16C2552 is a dual universal asynchronous receiver and transmitter (UART). It incorporates the functionality of two TL16C550D UARTs, each UART having its own register set and FIFOs. The two UARTs share only the data bus interface and clock source, otherwise they operate independently. Another name for the UART function is Asynchronous Communications Element (ACE), and these terms will be used interchangeably. The bulk of this document describes the behavior of each ACE, with the understanding that two such devices are incorporated into the TL16C2552.
