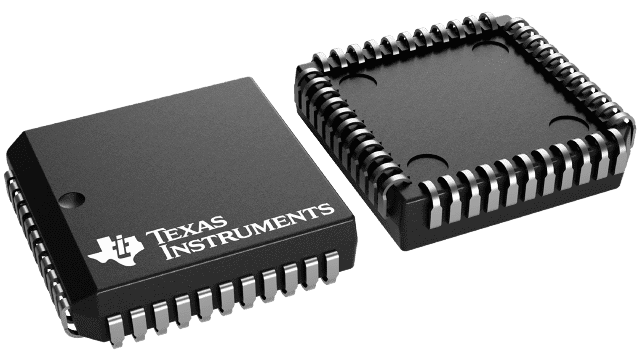

TL16C2752FN Texas Instruments - Yeehing Electronics
1.8-V to 5-V Dual UART with 64-Byte FIFOs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 7.481 |
100 — 249 | 6.099 |
250 — 999 | 4.794 |
1,000 + | 2.85 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | UART Interface IC |
RoHS | Y |
Number of Channels | 2 Channel |
Data Rate | 3 Mb/s |
Memory Size | 64 B |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 4.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | PLCC-44 |
Packaging | Tube |
Height | 4.06 mm |
Length | 16.59 mm |
Series | TL16C2752 |
Type | IrDA/RS-485 |
Width | 16.59 mm |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Voltage | 5 V |
Product Type | UART Interface IC |
Factory Pack Quantity | 26 |
Subcategory | Interface ICs |
Unit Weight | 0.079920 oz |
For more information, please refer to datasheet
Documents
More Information
The TL16C2752 is a speed and functional upgrade of the TL16C2552. Since they are pinout and software compatible, designs can easily migrate from the TL16C2552 to the TL16C2752 if needed. The additional functionality within the TL16C2752 is accessed via an extended register set. Some of the key new features are larger receive and transmit FIFOs, embedded IrDA encoders and decoders, RS-485 transceiver controls, software flow control (Xon/Xoff) modes, programmable transmit FIFO thresholds, extended receive and transmit threshold levels for interrupts, and extended receive threshold levels for flow control halt/resume operation.
