TL16C2752IFN Texas Instruments - Yeehing Electronics

1.8-V to 5-V Dual UART with 64-Byte FIFOs

Pricing (USD)

Quantity	Unit Price
1 — 99	6.801
100 — 249	5.544
250 — 999	4.358
1,000 +	2.59

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	UART Interface IC
RoHS	Y
Number of Channels	2 Channel
Data Rate	3 Mb/s
Memory Size	64 B
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

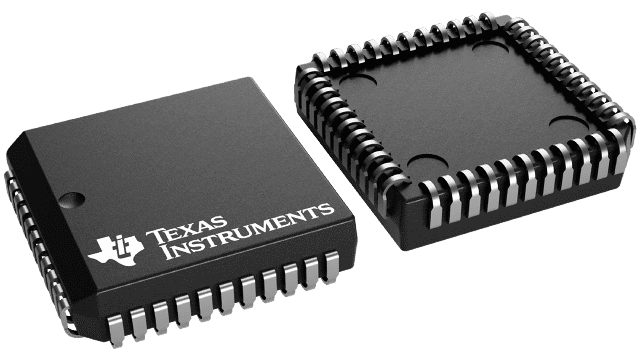

Package / Case	PLCC-44
Packaging	Tube
Height	4.06 mm
Length	16.59 mm
Series	TL16C2752
Type	IrDA/RS-485
Width	16.59 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	5 V
Product Type	UART Interface IC
Factory Pack Quantity	26
Subcategory	Interface ICs
Unit Weight	0.079920 oz

For more information, please refer to datasheet

Documents

TL16C2752IFN Datasheet

More Information

The TL16C2752 is a speed and functional upgrade of the TL16C2552. Since they are pinout and software compatible, designs can easily migrate from the TL16C2552 to the TL16C2752 if needed. The additional functionality within the TL16C2752 is accessed via an extended register set. Some of the key new features are larger receive and transmit FIFOs, embedded IrDA encoders and decoders, RS-485 transceiver controls, software flow control (Xon/Xoff) modes, programmable transmit FIFO thresholds, extended receive and transmit threshold levels for interrupts, and extended receive threshold levels for flow control halt/resume operation.
