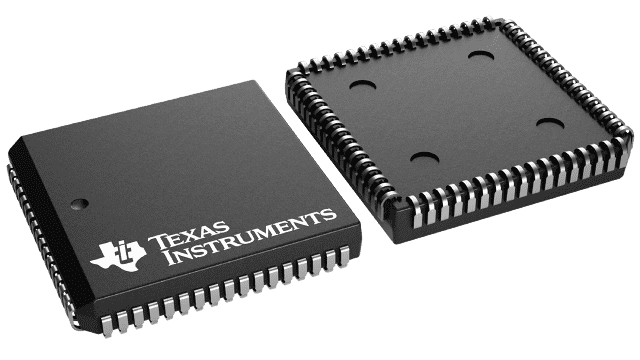

TL16C554AIFN Texas Instruments - Yeehing Electronics

Quad UART with 16-Byte FIFOs

Pricing (USD)

Quantity	Unit Price
1 — 99	20.684
100 — 249	18.067
250 — 999	13.93
1,000 +	8.72

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	UART Interface IC
RoHS	Y
Number of Channels	4 Channel
Data Rate	1 Mb/s
Memory Size	16 B
Supply Voltage - Max	5.25 V
Supply Voltage - Min	4.75 V
Operating Supply Current	50 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	PLCC-68
Packaging	Tube
Description/Function	Performs serial-to-parallel conversion on data characters received from peripheral devices or modems
Series	TL16C554A
Type	UART
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	5 V
Product Type	UART Interface IC
Propagation Delay Time	35 ns
Factory Pack Quantity	18
Subcategory	Interface ICs
Unit Weight	0.171777 oz

For more information, please refer to datasheet

Documents

TL16C554AIFN Datasheet

More Information

The TL16C554A is an enhanced quadruple version of the TL16C550C asynchronous-communications element (ACE). Each channel performs serial-to-parallel conversion on data characters received from peripheral devices or modems and parallel-to-serial conversion on data characters transmitted by the CPU. The complete status of each channel of the quadruple ACE can be read by the CPU at any time during operation. The information obtained includes the type and condition of the operation performed and any error conditions encountered.
