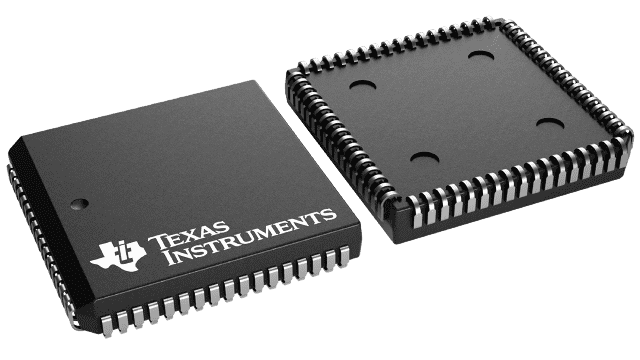

TL16C554FN Texas Instruments - Yeehing Electronics

Quad UART with 16-Byte FIFOs

Pricing (USD)

Quantity	Unit Price
1 — 99	21.15
100 — 249	18.474
250 — 999	14.244
1,000 +	8.92

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	UART Interface IC
RoHS	Y
Number of Channels	4 Channel
Data Rate	1 Mb/s
Memory Size	16 B
Supply Voltage - Max	5.25 V
Supply Voltage - Min	4.75 V
Operating Supply Current	50 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	PLCC-68
Packaging	Reel
Description/Function	Asynch Comm Element
Height	4.06 mm
Length	24.23 mm
Series	TL16C554
Width	24.23 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	5 V
Product Type	UART Interface IC
Factory Pack Quantity	250
Subcategory	Interface ICs
Unit Weight	0.171777 oz

For more information, please refer to datasheet

Documents

TL16C554FN Datasheet

More Information

The TL16C554 and the TL16C554I are enhanced quadruple versions of the TL16C550B asynchronous communications element (ACE). Each channel performs serial-to-parallel conversion on data characters received from peripheral devices or modems and parallel-to-serial conversion on data characters transmitted by the CPU. The complete status of each channel of the quadruple ACE can be read at any time during functional operation by the CPU. The information obtained includes the type and condition of the operation performed and any error conditions encountered.
