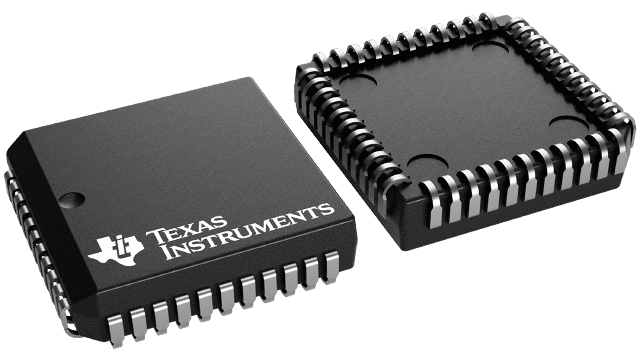

TL16C750FNR Texas Instruments - Yeehing Electronics

Single UART with 64-Byte Fifos, Auto Flow Control, Low-Power Modes

Pricing (USD)

Quantity	Unit Price
1 — 99	8.247
100 — 249	6.723
250 — 999	5.284
1,000 +	3.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	UART Interface IC
RoHS	Y
Number of Channels	1 Channel
Data Rate	1 Mb/s
Memory Size	64 B
Supply Voltage - Max	5.25 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	PLCC-44
Packaging	Reel
Height	4.06 mm
Length	16.59 mm
Series	TL16C750
Width	16.59 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V, 5 V
Product Type	UART Interface IC
Factory Pack Quantity	500
Subcategory	Interface ICs
Unit Weight	0.079920 oz

For more information, please refer to datasheet

Documents

TL16C750FNR Datasheet

More Information

The TL16C750 is a functional upgrade of the TL16C550C asynchronous communications element (ACE), which in turn is a functional upgrade of the TL16C450. Functionally equivalent to the TL16C450 on power up (character or TL16C450 mode), the TL16C750, like the TL16C550C, can be placed in an alternate mode (FIFO mode). This relieves the CPU of excessive software overhead by buffering received and transmitted characters. The receiver and transmitter FIFOs store up to 64 bytes including three additional bits of error status per byte for the receiver FIFO. The user can choose between a 16-byte FIFO mode or an extended 64-byte FIFO mode. In the FIFO mode, there is a selectable autoflow control feature that can significantly reduce software overload and increase system efficiency by automatically controlling serial data flow through the RTS output and the CTS input signals (see Figure 1).
