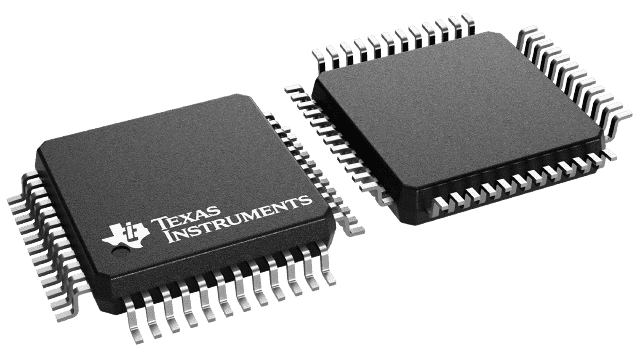

TL16C752BLPTREP Texas Instruments - Yeehing Electronics
Enhanced Product 3.3 V Dual Uart With 64-Byte Fifo
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 11.811 |
100 — 249 | 10.317 |
250 — 999 | 7.955 |
1,000 + | 4.98 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | UART Interface IC |
RoHS | Y |
Number of Channels | 2 Channel |
Data Rate | 3 Mb/s |
Memory Size | 64 B |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 2.7 V |
Operating Supply Current | 20 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 110 C |
Mounting Style | SMD/SMT |
Package / Case | LQFP-48 |
Packaging | Reel |
Features | Auto RTS/CTS |
Height | 1.4 mm |
Length | 7 mm |
Series | TL16C752B-EP |
Width | 7 mm |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3.3 V |
Product Type | UART Interface IC |
Factory Pack Quantity | 1000 |
Subcategory | Interface ICs |
Part # Aliases | V62/03626-02XE |
Unit Weight | 0.006409 oz |
For more information, please refer to datasheet
Documents
TL16C752BLPTREP Datasheet |
More Information
The TL16C752B is a dual-universal asynchronous receiver/transmitter (UART) with 64-byte FIFOs, automatic hardware/software flow control, and data rates up to 3 Mbps. The TL16C752B offers enhanced features. It has a transmission control register (TCR) that stores receiver FIFO threshold levels to start/stop transmission during hardware and software flow control. With the FIFO RDY register, the software gets the status of TXRDY/RXRDY for all four ports in one access. On-chip status registers provide the user with error indications, operational status, and modem interface control. System interrupts may be tailored to meet user requirements. An internal loopback capability allows onboard diagnostics.The UART transmits data, sent to it over the peripheral 8-bit bus, on the TX signal and receives characters on the RX signal. Characters can be programmed to be 5, 6, 7, or 8 bits. The UART has a 64-byte receive FIFO and transmit FIFO and can be programmed to interrupt at different trigger levels. The UART generates its own desired baud rate based upon a programmable divisor and its input clock. It can transmit even, odd, or no parity and 1, 1.5, or 2 stop bits. The receiver can detect break, idle, or framing errors, FIFO overflow, and parity errors. The transmitter can detect FIFO underflow. The UART also contains a software interface for modem control operations, and has software flow control and hardware flow control capabilities.
