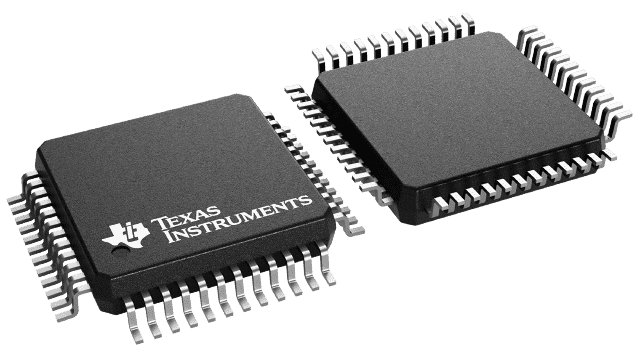

TL16C752BTPTREP Texas Instruments - Yeehing Electronics

Enhanced Product 3.3 V Dual Uart With 64-Byte Fifo

Pricing (USD)

Quantity	Unit Price
1 — 99	11.811
100 — 249	10.317
250 — 999	7.955
1,000 +	4.98

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	UART Interface IC
RoHS	Y
Number of Channels	2 Channel
Data Rate	3 Mb/s
Memory Size	64 B
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.7 V
Operating Supply Current	20 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 110 C
Mounting Style	SMD/SMT
Package / Case	LQFP-48
Packaging	Reel
Features	Auto RTS/CTS
Height	1.4 mm
Length	7 mm
Series	TL16C752B-EP
Width	7 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Product Type	UART Interface IC
Factory Pack Quantity	1000
Subcategory	Interface ICs
Part # Aliases	V62/03626-01XE
Unit Weight	0.006409 oz

For more information, please refer to datasheet

Documents

TL16C752BTPTREP Datasheet

More Information

The TL16C752B is a dual-universal asynchronous receiver/transmitter (UART) with 64-byte FIFOs, automatic hardware/software flow control, and data rates up to 3 Mbps. The TL16C752B offers enhanced features. It has a transmission control register (TCR) that stores receiver FIFO threshold levels to start/stop transmission during hardware and software flow control. With the FIFO RDY register, the software gets the status of TXRDY/RXRDY for all four ports in one access. On-chip status registers provide the user with error indications, operational status, and modem interface control. System interrupts may be tailored to meet user requirements. An internal loopback capability allows onboard diagnostics.The UART transmits data, sent to it over the peripheral 8-bit bus, on the TX signal and receives characters on the RX signal. Characters can be programmed to be 5, 6, 7, or 8 bits. The UART has a 64-byte receive FIFO and transmit FIFO and can be programmed to interrupt at different trigger levels. The UART generates its own desired baud rate based upon a programmable divisor and its input clock. It can transmit even, odd, or no parity and 1, 1.5, or 2 stop bits. The receiver can detect break, idle, or framing errors, FIFO overflow, and parity errors. The transmitter can detect FIFO underflow. The UART also contains a software interface for modem control operations, and has software flow control and hardware flow control capabilities.
