Description

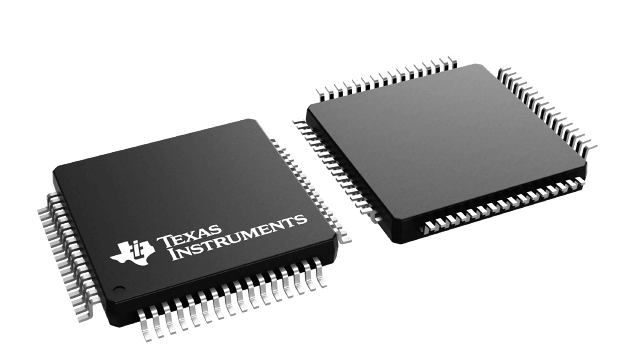

TL16CP754CPM Texas Instruments - Yeehing Electronics
Quad UART with 64-Byte FIFO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 13.172 |
| 100 — 249 | 11.506 |
| 250 — 999 | 8.871 |
| 1,000 + | 5.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | UART Interface IC |
| RoHS | Y |
| Number of Channels | 4 Channel |
| Data Rate | 3 Mb/s |
| Memory Size | 64 B |
| Supply Voltage - Max | 1.98 V |
| Supply Voltage - Min | 1.62 V |
| Operating Supply Current | 90 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-64 |
| Packaging | Reel |
| Height | 1.4 mm |
| Length | 10 mm |
| Series | TL16C754C |
| Type | RS-232/RS-485 |
| Width | 10 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.8 V |
| Product Type | UART Interface IC |
| Factory Pack Quantity | 160 |
| Subcategory | Interface ICs |
| Unit Weight | 0.012088 oz |
For more information, please refer to datasheet
Documents
| TL16CP754CPM Datasheet |
More Information
The 754C is a quad universal asynchronous receiver transmitter (UART) with 64-byte FIFOs, automatic hardware and software flow control, and data rates up to 3 Mbps. It incorporates the functionality of four UARTs, each UART having its own register set and FIFOs. The four UARTs share only the data bus interface and clock source, otherwise they operate independently. Another name for the UART function is Asynchronous Communications Element (ACE), and these terms are used interchangeably. The bulk of this document describes the behavior of each ACE, with the understanding that four such devices are incorporated into the 754C. The 754C offers enhanced features. It has a transmission control register (TCR) that stores received FIFO threshold level to start or stop transmission during hardware and software flow control. With the FIFO RDY register, the software gets the status of TXRDY/RXRDY for all four ports in one access. On-chip status registers provide the user with error indications, operational status, and modem interface control. System interrupts may be tailored to meet user requirements. An internal loopback capability allows onboard diagnostics.
