Texas Instruments
TL28L92FR
TL28L92FR
Regular price
$4.27 USD
Regular price
Sale price
$4.27 USD
Unit price
per
Couldn't load pickup availability

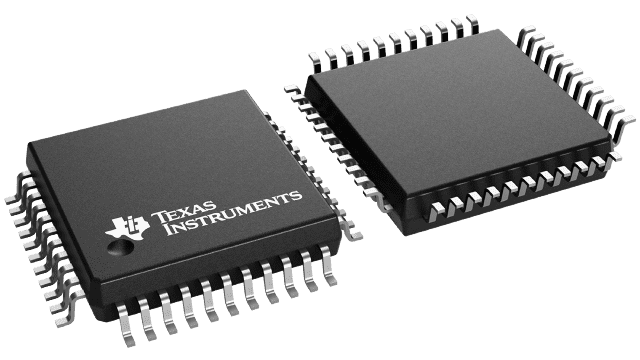

TL28L92FR Texas Instruments - Yeehing Electronics
3.3-V/5-V Dual Universal Asynchronous Receiver/Transmitter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.123 |
| 100 — 249 | 8.842 |
| 250 — 999 | 6.818 |
| 1,000 + | 4.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | UART Interface IC |
| RoHS | T |
| Number of Channels | 2 Channel |
| Data Rate | 1 Mb/s |
| Memory Size | 16 B |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | QFP-44 |
| Packaging | Tray |
| Height | 1.75 mm |
| Length | 10 mm |
| Series | TL28L92 |
| Width | 10 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V, 5 V |
| Product Type | UART Interface IC |
| Factory Pack Quantity | 96 |
| Subcategory | Interface ICs |
| Unit Weight | 0.017588 oz |
For more information, please refer to datasheet
Documents
| TL28L92FR Datasheet |
More Information
The TL28L92 is a pin and function replacement for the SC26C92 operating at 3.3 V or 5 V supply with added features and deeper FIFOs. Its configuration on power-up is that of the SC26C92. Its differences from the SC26C92 are: 16 character receiver, 16 character transmit FIFOs, watchdog timer for each receiver, mode register 0 is added, extended baud rate and overall faster speeds, programmable receiver and transmitter interrupts.
