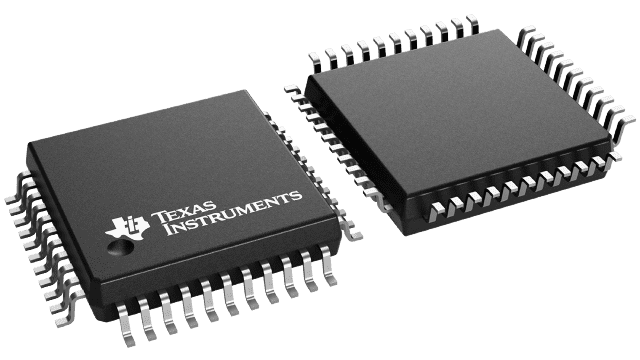

TL28L92IFR Texas Instruments - Yeehing Electronics

3.3-V/5-V Dual Universal Asynchronous Receiver/Transmitter

Pricing (USD)

Quantity	Unit Price
1 — 99	10.491
100 — 249	9.164
250 — 999	7.066
1,000 +	4.42

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	UART Interface IC
RoHS	Y
Number of Channels	2 Channel
Data Rate	1 Mb/s
Memory Size	16 B
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	QFP-44
Packaging	Tray
Height	1.75 mm
Length	10 mm
Series	TL28L92
Width	10 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V, 5 V
Product Type	UART Interface IC
Factory Pack Quantity	96
Subcategory	Interface ICs
Unit Weight	0.017588 oz

For more information, please refer to datasheet

Documents

TL28L92IFR Datasheet

More Information

The TL28L92 is a pin and function replacement for the SC26C92 operating at 3.3 V or 5 V supply with added features and deeper FIFOs. Its configuration on power-up is that of the SC26C92. Its differences from the SC26C92 are: 16 character receiver, 16 character transmit FIFOs, watchdog timer for each receiver, mode register 0 is added, extended baud rate and overall faster speeds, programmable receiver and transmitter interrupts.
