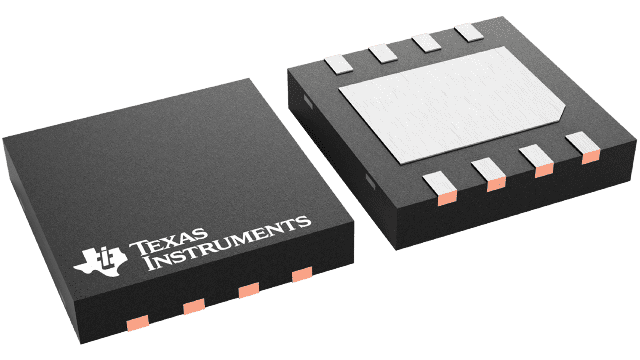

TL4242DRJR Texas Instruments - Yeehing Electronics

Adjustable LED driver

Pricing (USD)

Quantity	Unit Price
1 — 99	0.894
100 — 249	0.688
250 — 999	0.506
1,000 +	0.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	1 Channel
Output Current	500 mA
Input Voltage	4.5 V to 42 V
Operating Frequency	10 kHz
Supply Current - Max	22 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	WSON-8
Series	TL4242
Packaging	Reel
Features	LED Open Detection, Thermal Shutdown
Operating Temperature Range	- 40 C to + 125 C
Output Type	Current Mode
Type	Linear
Brand	Texas Instruments
Topology	PWM
Moisture Sensitive	Yes
Operating Supply Voltage	4.5 V to 42 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs
Unit Weight	0.000388 oz

For more information, please refer to datasheet

Documents

TL4242DRJR Datasheet

More Information

The TL4242 device is an integrated, adjustable, constant-current source that can drive loads up to 500 mA. The output current level can be adjusted through an external resistor. The device is designed to supply high-power LEDs. The TL4242 is provided in the DRJ (WSON) package. Protection circuits prevent damage to the device in case of overload, short circuit, reverse polarity, and overtemperature. The connected LEDs are protected against reverse polarity as well as excess voltages up to 45 V.
