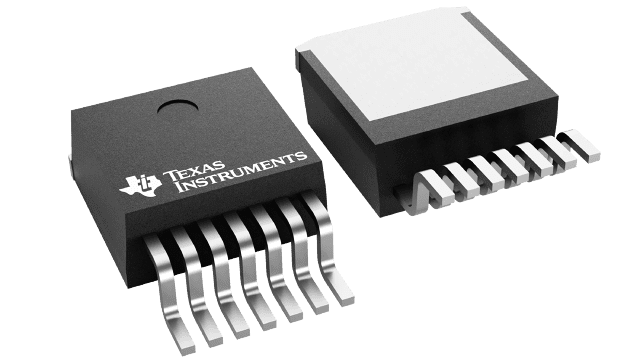

TL4242QKTTRQ1 Texas Instruments - Yeehing Electronics
Automotive adjustable LED driver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.955 |
100 — 249 | 2.44 |
250 — 999 | 1.753 |
1,000 + | 0.75 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Number of Channels | 1 Channel |
Output Current | 500 mA |
Input Voltage | 4.5 V to 42 V |
Operating Frequency | 10 kHz |
Supply Current - Max | 22 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | TO-263-7 |
Qualification | AEC-Q100 |
Series | TL4242-Q1 |
Packaging | Reel |
Features | Thermal Shutdown |
Operating Temperature Range | - 40 C to + 125 C |
Output Type | Current Mode |
Type | Linear |
Brand | Texas Instruments |
Topology | PWM |
Moisture Sensitive | Yes |
Operating Supply Voltage | 4.5 V to 42 V |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 500 |
Subcategory | Driver ICs |
Unit Weight | 0.056438 oz |
For more information, please refer to datasheet
Documents
TL4242QKTTRQ1 Datasheet |
More Information
The TL4242-Q1 device is an integrated adjustable constant-current source, driving loads up to 500 mA. One can adjust the output current level through an external resistor. The device design is for supplying high-power LEDs (for example, OSRAM Dragon LA W57B) under the severe conditions of automotive applications, resulting in constant brightness and extended LED lifetime. The device comes in the DRJ (WSON) and KTT (TO-263) package. Protection circuits prevent damage to the device in case of overload, short-circuit, reverse polarity, and overheat. The device provides the connected LEDs protection against reverse polarity as well as excess voltages up to 45 V.
