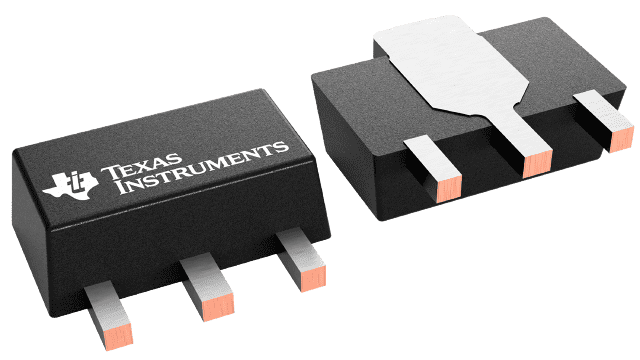

TL431CPK Texas Instruments - Yeehing Electronics

Adjustable precision shunt regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	0.121
100 — 249	0.078
250 — 999	0.059
1,000 +	0.03

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Voltage References
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOT-89-3
Reference Type	Shunt Adjustable Precision References
Output Voltage	Adjustable
Initial Accuracy	2 %
Temperature Coefficient	92 PPM / C
Series VREF - Input Voltage - Max	37 V
Shunt Current - Max	100 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TL431
Packaging	Reel
Description/Function	ADJUSTABLE PRECISION SHUNT REGULATOR
Height	1.5 mm
Length	4.5 mm
Operating Temperature Range	- 40 C to + 125 C
Product	Voltage References
Width	2.5 mm
Brand	Texas Instruments
Shunt Current - Min	600 uA
Topology	Shunt References
Maximum Output Voltage	36 V
Moisture Sensitive	Yes
Product Type	Voltage References
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002360 oz

For more information, please refer to datasheet

Documents

TL431CPK Datasheet

More Information

The TL431LI / TL432LI are pin-to-pin alternatives to TL431 / TL432. TL43xLI offers better stability, lower temperature drift (VI(dev)), and lower reference current (Iref) for improved system accuracy.
