Texas Instruments

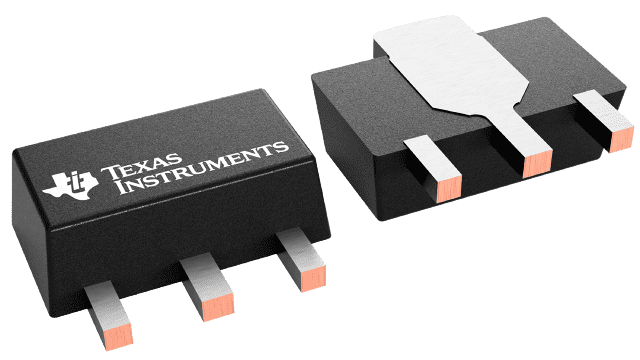

TL431CPKE6
TL431CPKE6
Regular price
$0.03 USD
Regular price
Sale price
$0.03 USD
Unit price
per
Couldn't load pickup availability
TL431CPKE6 Texas Instruments - Yeehing Electronics
Adjustable precision shunt regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.133 |
| 100 — 249 | 0.086 |
| 250 — 999 | 0.065 |
| 1,000 + | 0.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Maxim Integrated |
| Product Category | Voltage References |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-Narrow-8 |
| Reference Type | Series Precision References |
| Output Voltage | 4.096 V |
| Temperature Coefficient | 2 PPM/C |
| Series VREF - Input Voltage - Max | 13.5 V |
| Shunt Current - Max | 5 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | MAX6164 |
| Packaging | Reel |
| Accuracy | 2 mV/mA |
| Height | 1.5 mm |
| Length | 5 mm |
| Product | Voltage References |
| Width | 4 mm |
| Brand | Maxim Integrated |
| Topology | Series References |
| Product Type | Voltage References |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Part # Aliases | MAX6164 |
| Unit Weight | 0.006596 oz |
For more information, please refer to datasheet
Documents
| TL431CPKE6 Datasheet |
More Information
The TL431LI / TL432LI are pin-to-pin alternatives to TL431 / TL432. TL43xLI offers better stability, lower temperature drift (VI(dev)), and lower reference current (Iref) for improved system accuracy.
